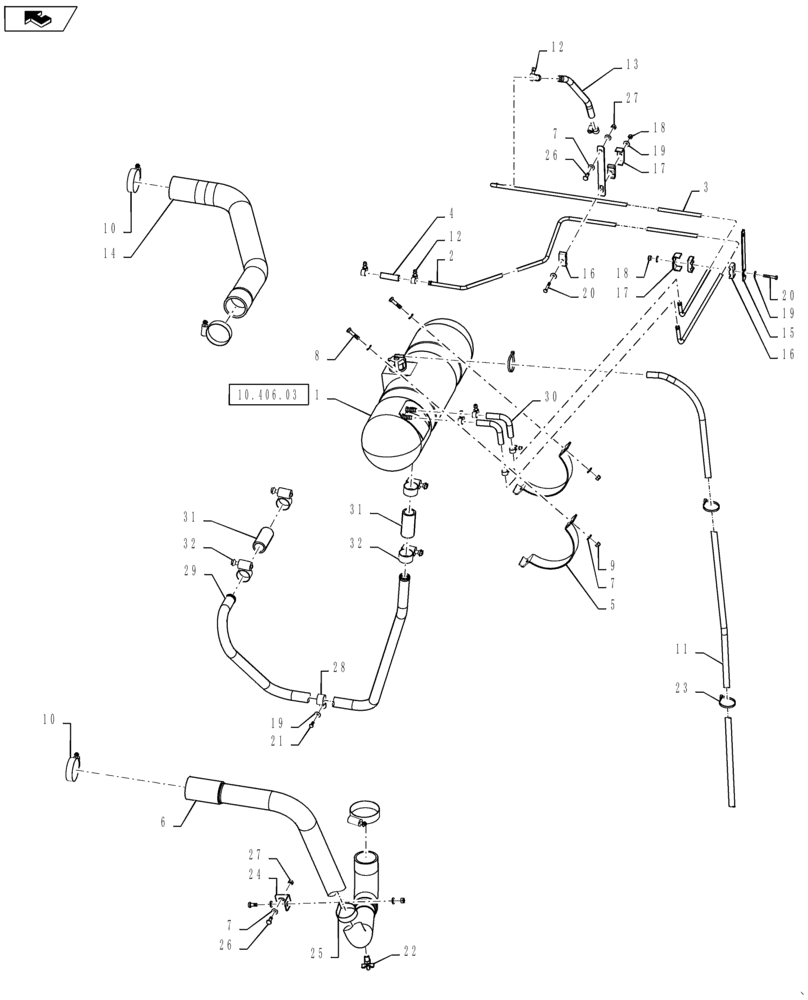

Запчасти Case IH 7230 (10.406.01) - COOLANT CIRCUIT 7230 T2/T4 (10) - ENGINE

1

87670349

RESERVOIR, COOLANT E

1шт.

2

84171885

RIGID TUBE

1шт.

3

84172558

RIGID TUBE

1шт.

4

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

1шт.

5

84442536

CLAMP

2шт.

6

87530575

TUBE,386.3 mm L

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

8

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

86633352

HOSE CLAMP,57mm - 79mm

4шт.

11

87395212

TUBE

1шт.

12

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

8шт.

13

84144768

INTAKE AIR HOSE

1шт.

14

84223174

HOSE

Upper Radiator

1шт.

15

84466525

BRACKET

2шт.

16

430357

CLAMP

4шт.

17

431941

SUPPORT

2шт.

18

353308

NUT,M6 x 1.0, Cl 8

2шт.

19

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

20

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

22

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

5шт.

23

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

24

87576259

BRACKET

1шт.

25

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

3шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

27

9706690

NUT,M8 x 1.25, Cl 8

1шт.

28

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

29

87482872

TUBE,1.125" OD

4шт.

30

87671820

HOSE,9.40 mm ID, SAE 30R2

2шт.

31

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

1шт.

32

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.
