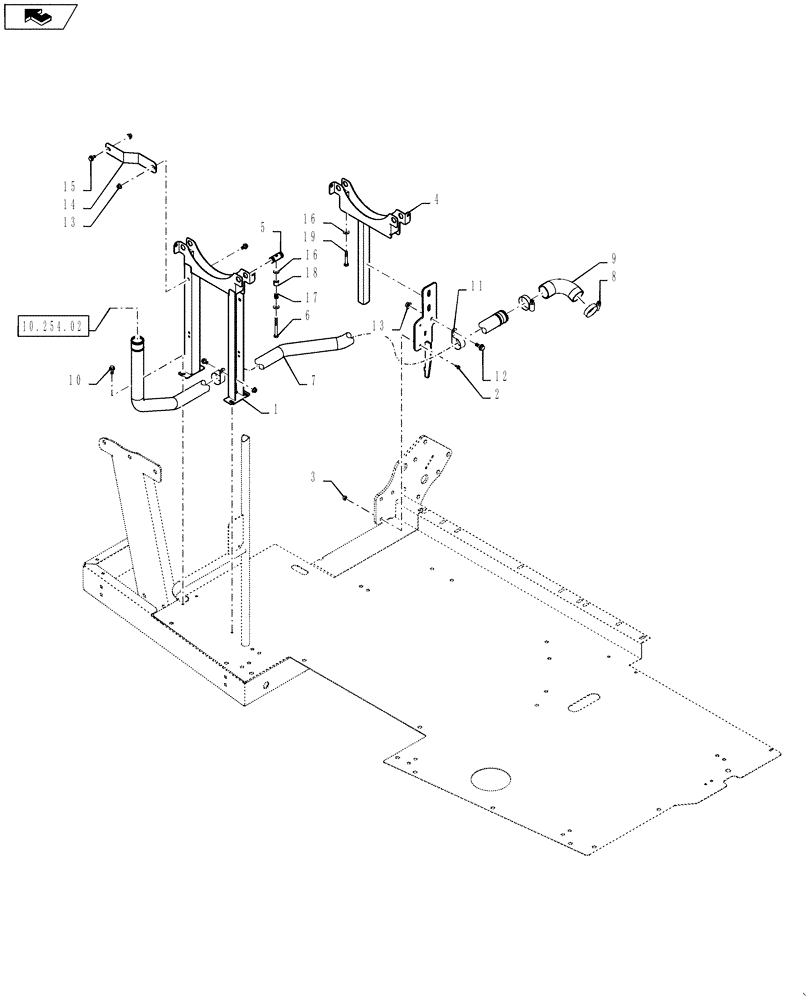

Запчасти Case IH 7230 (10.254.02[02]) - EXHAUST/MUFFLER 7230 T4 CONTINUED (10) - ENGINE

1

84220759

SUPPORT

1шт.

2

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

3шт.

3

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

4

84219383

SUPPORT

3шт.

5

84123471

PIN,22mm OD x 58mm OAL, 2 Grooves

4шт.

6

538885

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

2шт.

7

84282882

RIGID TUBE

1шт.

8

86625019

HOSE CLAMP,44mm - 67mm

2шт.

9

87674853

ELBOW

1шт.

10

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

11

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

12

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

13

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

14

84238660

BRACKET

1шт.

15

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

2шт.

16

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

6шт.

17

11104

SPRING

2шт.

18

84349044

EXHAUST SYSTEM PIPE

2шт.

19

120115

BOLT,M10 x 1.5 x 76.58mm, Cl 8.8

2шт.
