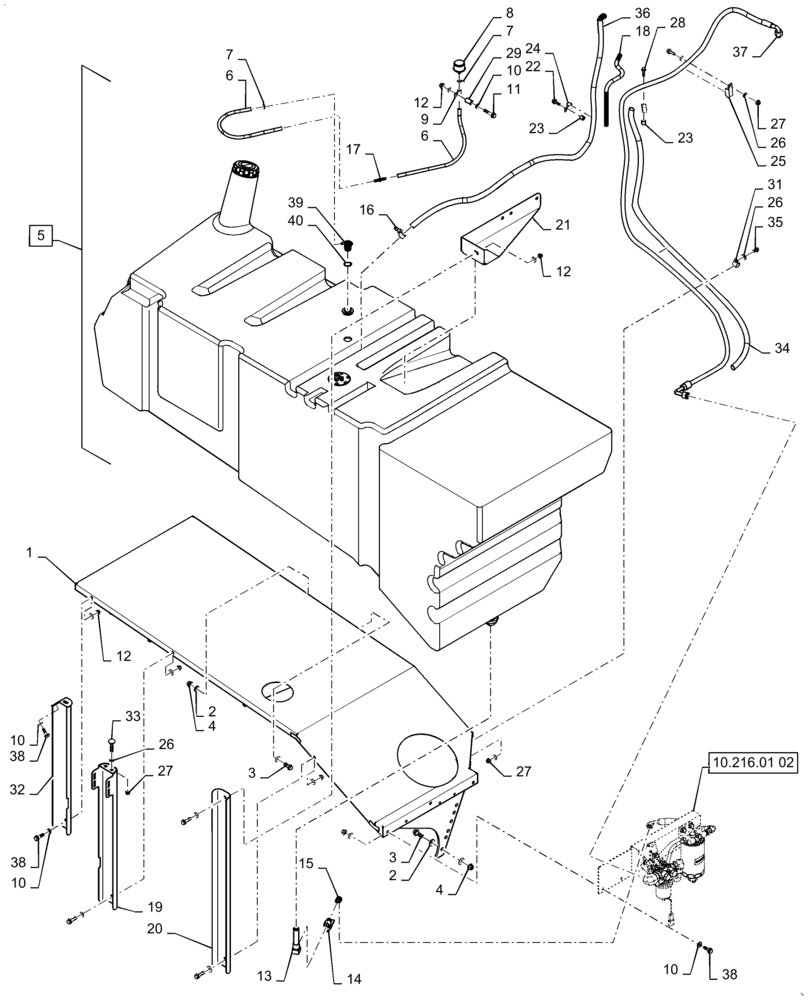

Запчасти Case IH 7230 (10.216.01) - FUEL SYSTEM 7230 T2/T4 (10) - ENGINE

1

84335081

SUPPORT ASSY.

Fuel Tank Support

1шт.

2

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

17шт.

3

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

9шт.

4

9706685

NUT,M12 x 1.75, Cl 8

8шт.

5

84263245

FUEL TANK

1000 L, Incl 39 - 40

1шт.

6

84302861

HOSE

2шт.

7

86637701

HOSE CLAMP,12.45mm - 12.95mm

2шт.

8

86999949

FUEL FILTER

Air Vent Filter

1шт.

9

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

25шт.

11

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

12

100016

NUT,M10 x 1.5, Cl 8

10шт.

13

84331258

FILTER STRAINER

Fuel Suction, 30 Mesh

1шт.

14

84011517

DRAINCOCK/TAP SUPPLY,1/4" x 1/4"

1шт.

15

84069089

HYD CONNECTOR,M18 x 1.5 NPT

1шт.

16

86637702

HOSE CLAMP,15.49mm - 16.26mm

1шт.

17

84354931

FITTING

1шт.

18

87283963

INSULATOR

2шт.

19

84346926

BRACKET

1шт.

20

87734807

BRACKET

1шт.

21

87482602

BRACKET

1шт.

22

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

23

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

24

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

25

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

27

9706690

NUT,M8 x 1.25, Cl 8

4шт.

28

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

29

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

30

400981

SEALANT

1шт.

31

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

87750278

CHANNEL

1шт.

33

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

87105416

HOSE PROTECTION,16.64 mm ID x 1345.00 mm

3шт.

35

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

36

84538433

FUEL HOSE,9.53mm ID x 2560mm L, SAE 100R6

Return

1шт.

37

87743281

FUEL HOSE,10mm ID x 2960mm L, SAE 100R6

Supply

1шт.

38

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

14шт.

39

86999948

SAFETY VALVE

Tank

1шт.

40

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

Tank

1шт.
