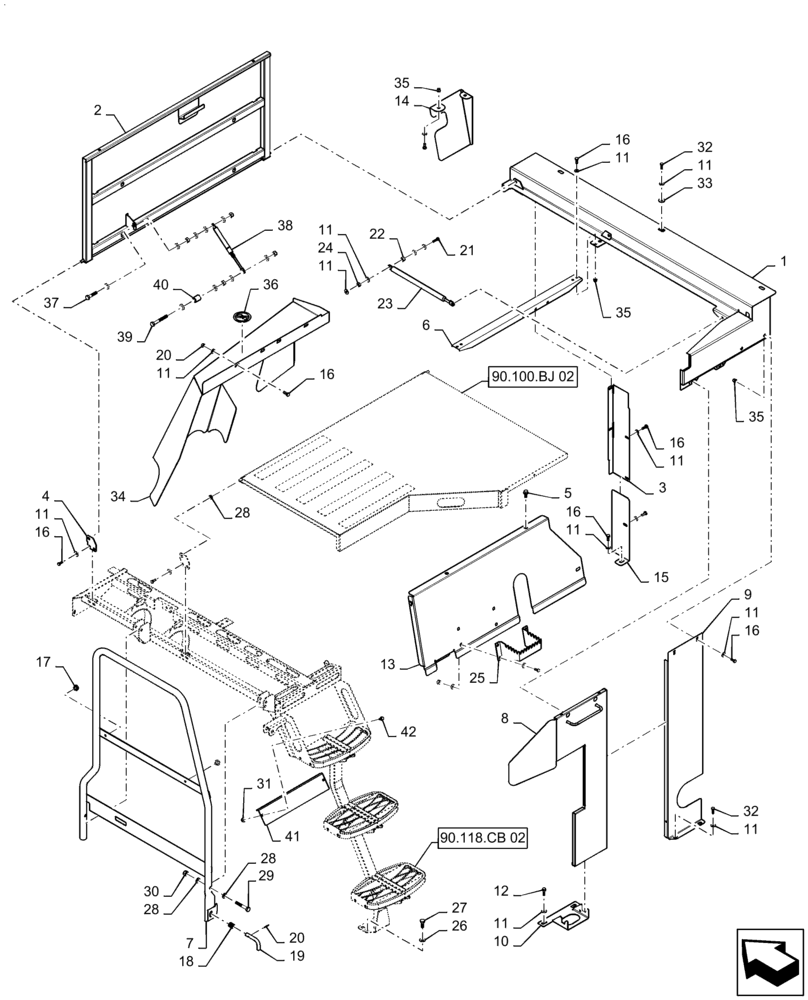

Запчасти Case IH 7230 (90.105.05[01]) - ENGINE COVERS AND LADDER, MID 7230 T2/T4 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87596233

FRAME

Cooler Box Cover

1шт.

2

87485663

COVER

Rotor Gearbox

1шт.

3

84490642

DEFLECTOR

Cooler Box, Front, Upper

1шт.

4

87653826

HINGE

Rotor Gearbox Door

2шт.

5

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

6

87555590

CHANNEL

Support, Front

1шт.

7

84187234

HANDRAIL

Engine Deck

1шт.

8

84415846

COVER

Airbox Access

1шт.

9

84518342

COVER

Cooler Box, Rear

1шт.

10

84512292

SUPPORT

Engine Deck, Lower

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

67шт.

12

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

13

84522357

BAFFLE

Engine Cover, Front

1шт.

14

84488628

DEFLECTOR

Cooler Box, Front, Bottom

1шт.

15

84489689

DEFLECTOR

Cooler Box, Front, Middle

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

26шт.

17

86975394

BUMPER

Rubber

2шт.

18

86611329

SPRING

36.5mm Free Length

1шт.

19

86611330

PIN,16.56mm OD

Jack

1шт.

20

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

21

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

22

9706690

NUT,M8 x 1.25, Cl 8

18шт.

23

84334242

GAS STRUT

Engine Deck

1шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

25

87105622

STEP

Engine Bay

2шт.

26

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

27

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

28

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

7шт.

29

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

30

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

31

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

32

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

10шт.

33

140041

WASHER,M8 x 28mm OD x 3mm Thk

5шт.

34

84332245

DEFLECTOR

Engine Deck, Front

1шт.

35

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

7шт.

36

84432904

DECAL

No Step

1шт.

37

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

38

84121818

GAS STRUT

Rotor Gearbox Cover

1шт.

39

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

1шт.

40

86580795

SPACER

8mm ID x 15.9mm OD x 21.8mm OAL

1шт.

41

84423483

STEP

Kick Plate

1шт.

42

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.
