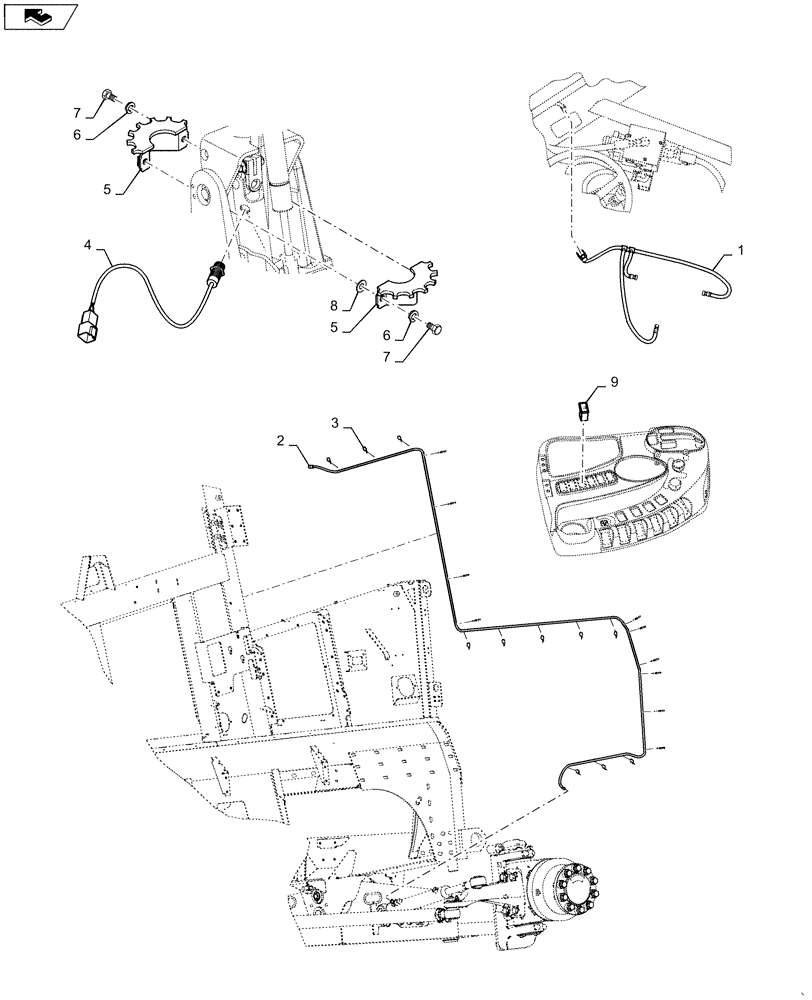

Запчасти Case IH 7230 (88.430.02) - WIRING ASSY, AUTO GUIDANCE SWITCH (88) - ACCESSORIES

1

84455109

WIRE HARNESS

Autoguidance Valve

1шт.

2

87371032

WIRE HARNESS

Steering Cylinder To Expansion Harness

1шт.

3

86566990

CABLE TIE,292mm OAL x 4.8mm W

21шт.

4

87342073

SENSOR

Steering Angle Sensor

1шт.

5

84452411

SPLINED RING

Steering Angle Sensor Reluctor

2шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

9

84454794

TOGGLE SWITCH

Autoguidance

1шт.
