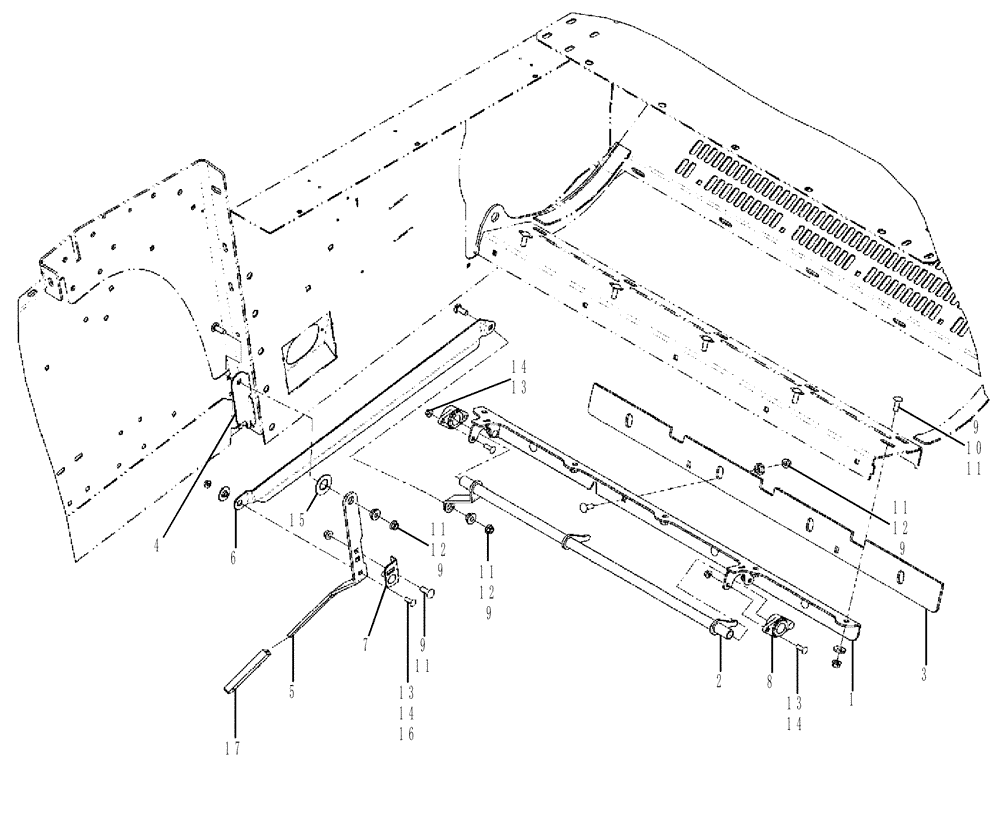

Запчасти Case IH 7230 (88.210.13[03]) - SHEAR BAR ASSEMBLY, STANDARD (88) - ACCESSORIES

1

84187510

BAR PLATE

1шт.

2

84187516

ARM

1шт.

3

84187503

BAR PLATE

Shear Bar

1шт.

4

84187527

PLATE

Pivot Plate

1шт.

5

84192818

HANDLE

1шт.

6

84174611

DRAG LINK

1шт.

7

84187524

PLATE

Adjuster Plate

1шт.

8

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

2шт.

9

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

M10x30 CL10.9 ZND

13шт.

10

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

5шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

13шт.

12

84231043

BUSHING,10.5mm ID x 27mm OD x 12mm Thk

Shoulder Bushing

6шт.

13

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

M8x25 CL10.9 ZND

5шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Flange Nut

5шт.

15

603797

THRUST WASHER,25.4mm ID x 50.8mm OD x 1.7mm W

Thrust Washer

1шт.

16

87374162

BUSHING,9mm ID x 35mm OD x 6mm L

1шт.

17

357545

HANDLE GRIP

1шт.
