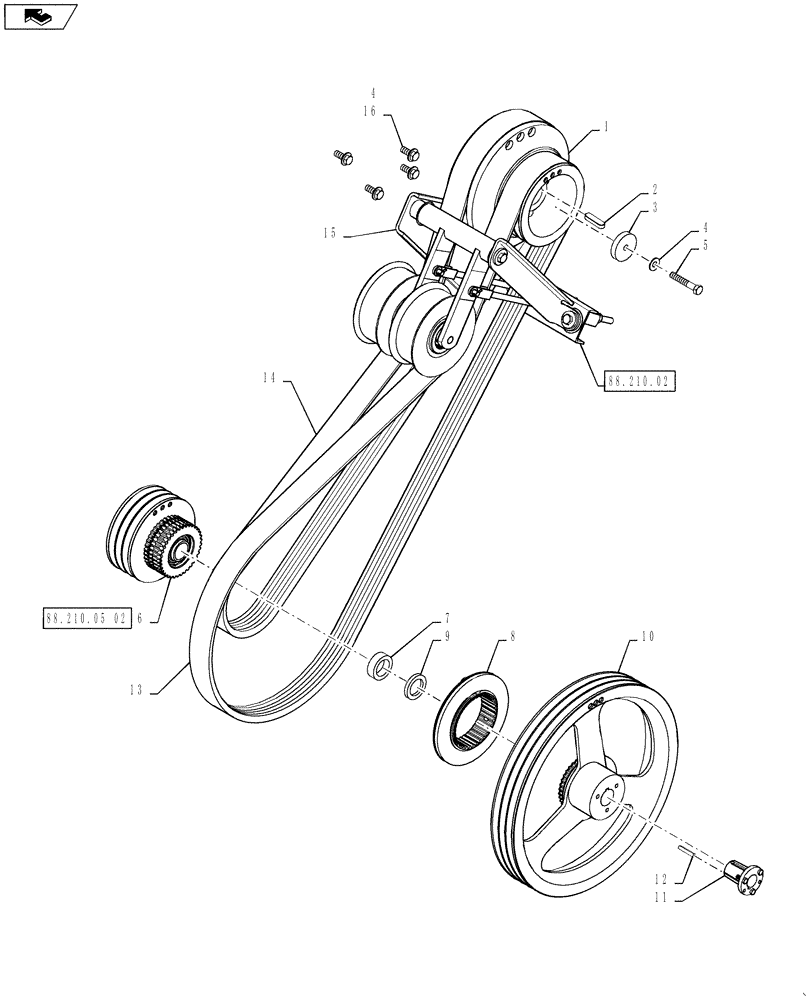

Запчасти Case IH 7230 (88.210.05) - STRAWCHOPPER DRIVE-PULLEYS AND BELTS (88) - ACCESSORIES

1

87281239

PULLEY,275mm OD

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

84299070

SPLINED COUPLING

1шт.

7

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

8

87283584

COLLAR,36T

1шт.

9

84223290

SPACER,35.5mm ID x 54mm OD x 7.5mm OAL

1шт.

10

87283588

PULLEY

1шт.

87283586

PULLEY,467.7mm OD

1шт.

87301554

PIN,10mm OD x 35mm OAL

10x35mm

2шт.

87325137

PLATE

1шт.

87283587

GEAR,36T

1шт.

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

4шт.

11

87107341

BUSHING,34.9mm ID x 74.6mm Thk

1шт.

12

87485

KEY,50.8mm OAL x 7.96mmThk

1шт.

13

86517680

V-BELT,3 Rib, 3045mm Nominal Length

1шт.

14

86976208

V-BELT,3 Rib, 2720mm Nominal Length

1шт.

15

NSS

NOT SOLD SEPARAT

See Page 88.210.02

1шт.

16

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.
