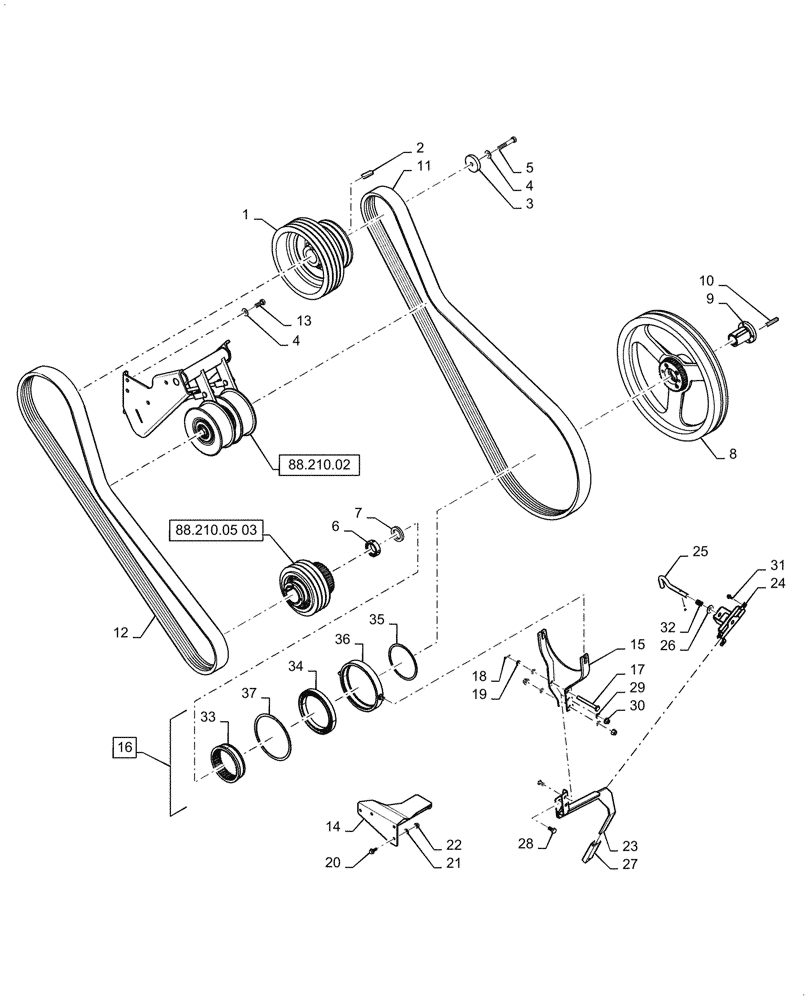

Запчасти Case IH 7230 (88.210.03) - STRAWCHOPPER DRIVE W/ REMOTE SHIFT-BELTS AND PULLEYS (88) - ACCESSORIES

1

87281239

PULLEY,275mm OD

1шт.

2

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

5

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

6

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

1шт.

7

84223290

SPACER,35.5mm ID x 54mm OD x 7.5mm OAL

1шт.

8

84229854

PULLEY

1шт.

9

87107341

BUSHING,34.9mm ID x 74.6mm Thk

1шт.

10

87485

KEY,50.8mm OAL x 7.96mmThk

1шт.

11

86517680

V-BELT,3 Rib, 3045mm Nominal Length

1шт.

12

86976208

V-BELT,3 Rib, 2720mm Nominal Length

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

14

84477335

BRACKET

1шт.

15

84360257

YOKE

1шт.

16

84229927

BEARING ASSY

Chopper Shift, Incl 33 - 37

1шт.

17

87661862

PIN,10mm OD x 95mm L

1шт.

18

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

19

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

23

84474223

HANDLE

1шт.

24

84473476

GUIDE

1шт.

25

84335923

PIN,12.75mm OD

1шт.

26

86637949

WASHER,0.53" ID x 1.12" OD x 0.06" Thk

1шт.

27

357545

HANDLE GRIP

1шт.

28

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

3шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

30

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

31

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

3шт.

32

87000071

COMPRESSION SPRING,47.2mm Free Length

1шт.

33

84220769

COLLAR,36T

Chopper Shift

1шт.

34

84229919

ROLLER BEARING,130mm ID x 165mm OD x 18mm W

1шт.

35

84360416

RETAINER

117.688mm ID x 124.028mm OD x 1.829mm Thk

1шт.

36

84230866

CARRIER

Chopper Shift

1шт.

37

84229924

RETAINER

160.197mm ID x 168.122mm OD x 2.184mm Thk

1шт.
