Запчасти Case IH 7230 (88.210.01) - STRAWCHOPPER DRIVE, STANDARD (88) - ACCESSORIES

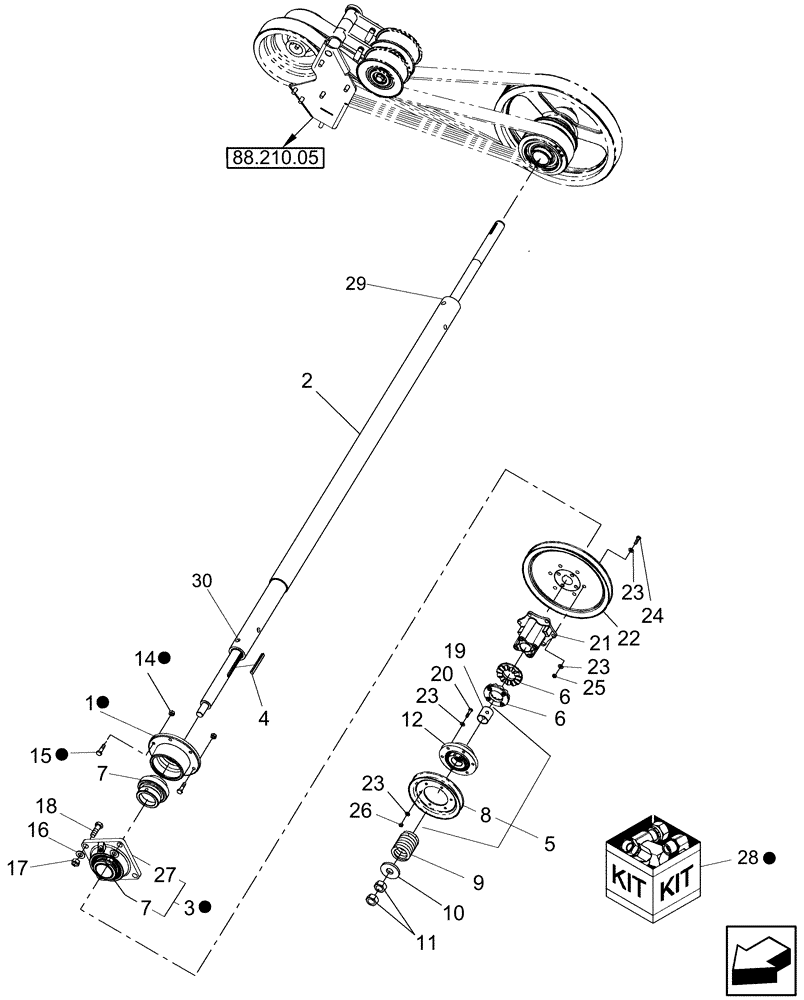

Схема запчастей Case IH 7230 - (88.210.01) - STRAWCHOPPER DRIVE, STANDARD (88) - ACCESSORIES
23
12
6
14
29
9
25
17
21
2
6
22
26
5
23
24
23
7
30
28
27
1
4
19
10
88.210.05
16
7
15
8
23
11
18
20
3

Артикул

Название

Примечание

Количество

1

84174156

BEARING ASSY

Bearing, Six-Bolt; Incl 7

1шт.

2

84252624

SHAFT

Heat Treated, Used With 87011857 Bellville Spring For Tailings Slip Clutch

1шт.

3

87109088

BEARING ASSY

Support - Incl 7 & 27

1шт.

Please see Figure Note

1шт.

4

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

5

87629096

PULLEY,218mm OD

1шт.

6

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

7

NSS

NOT SOLD SEPARAT

Bearing

2шт.

8

86999341

PULLEY,218mm OD

Driver, Tailings

1шт.

8

84533567

PULLEY,269mm OD

Std Speed W/ Suction Fan

1шт.

9

420927

SPRING,110mm Free Length

1шт.

10

86997063

GROOVED BUSHING,50.04mm ID x 94.49mm OD x 20.83mm Thk

1шт.

11

9848973

NUT,M24 x 3.0, Cl 10

2шт.

12

87619879

HUB,44.0125mm ID x 62mm Thk

1шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

15

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

M12 x 45

6шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

17

392530

NUT,M16, Cl 10

4шт.

18

9845488

BOLT

Carriage, Short Neck, CL 10.9, M16 x 2 x 50

4шт.

19

86997496

BUSHING,40.09mm ID x 44.09mm OD x 50mm L

1шт.

20

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

6шт.

21

87011488

HUB,40.02mm ID x 110.8mm Thk

Std Speed, ROW

1шт.

21

84544453

HUB

Std Speed, NAR

1шт.

22

84128455

PULLEY ASSY.

Single Speed

1шт.

Shown

1шт.

22

86999007

PULLEY,335mm OD

Two Speed (Double Pulley)

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

24

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

26

825-1408

NUT,M8, Cl 8

6шт.

27

NSS

NOT SOLD SEPARAT

HOUSING, Bearing - Incl with 3

1шт.

28

87723220

DRIVE

Part of Kit 87723223, Beater to Chopper Conversion

1шт.

29

87016664

PIN,12mm OD x 70mm L, Coiled

1шт.

30

87037789

PIN,M12 x 60, Coiled

1шт.

Выбрано товаров: 34
