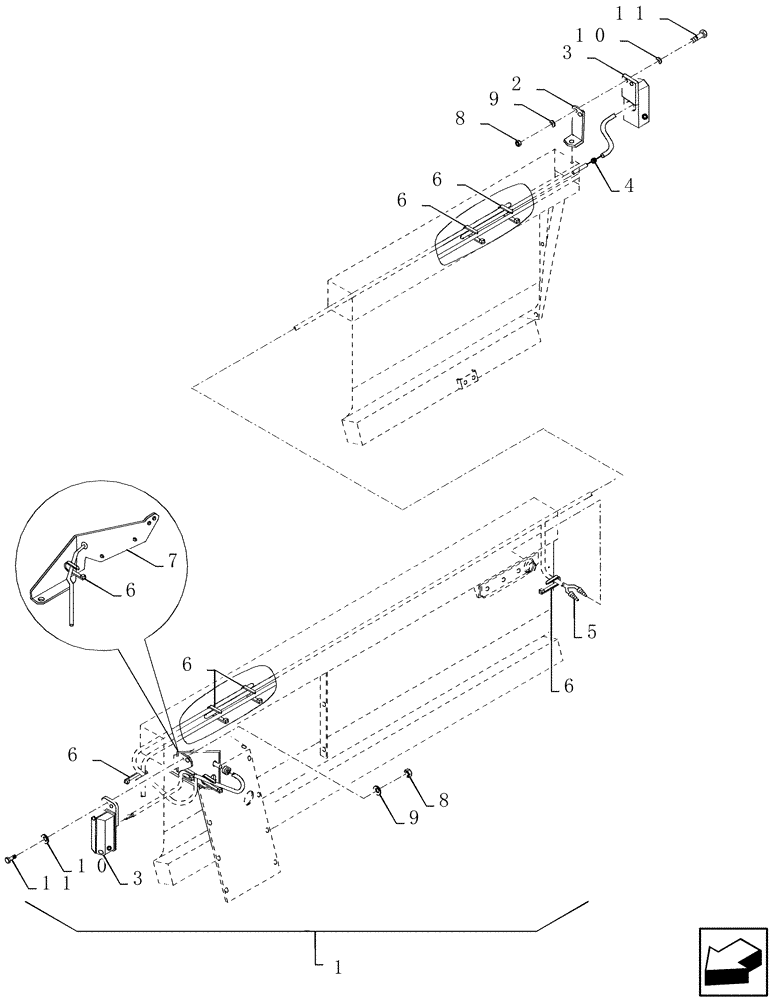

Запчасти Case IH 7230 (88.100.03) - DIA KIT: GRAIN HEADER ILLUMINATION, EU ONLY (88) - ACCESSORIES

1

84050562

DIA KIT, HARVESTER

Grain Header Illumination, EU Only Incl 2 - 11

1шт.

2

84077733

BRACKET

1шт.

3

449531

POSITION LAMP,Red

2шт.

4

335315

GROMMET

2шт.

5

84432334

WIRE HARNESS

Grain Head Illumination

1шт.

6

86566989

CABLE TIE,208mm L

9шт.

7

84432804

SUPPORT

1шт.

8

353308

NUT,M6 x 1.0, Cl 8

4шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

10

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

4шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.
