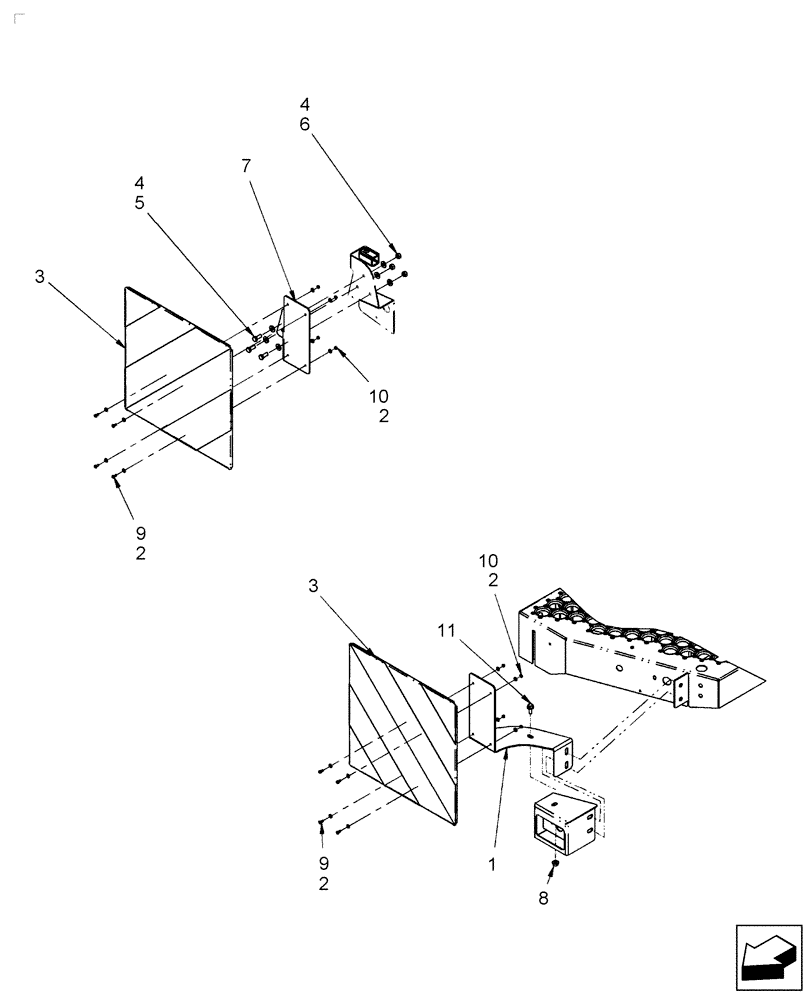

Запчасти Case IH 7230 (88.090.04) - SIGNAL PLATES, FRONT - EU - 72/82/9230 (88) - ACCESSORIES

1

87494228

BRACKET

Signal Plate

1шт.

2

84146825

BRACKET

LH Signal Plate

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

5

9706690

NUT,M8 x 1.25, Cl 8

3шт.

6

84607381

PLATE

Signal

2шт.

7

385683

BOLT,M4 x 0.7 x 12.92mm, Cl 8.8

8шт.

8

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

16шт.

9

100012

NUT,M4 x 0.7, Cl 8

8шт.

10

86511479

BOLT,Hex Flg, M8 x 20mm

1шт.

11

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.
