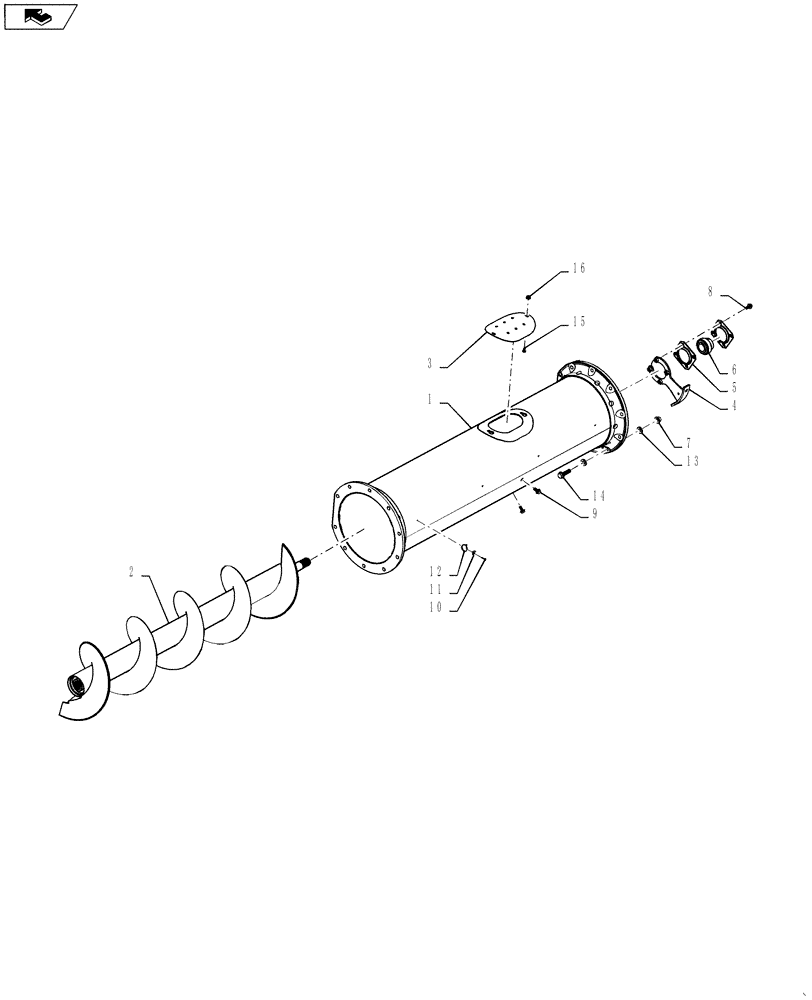

Запчасти Case IH 7230 (88.080.06) - DIA KIT: UNLOADING TUBE, HC(HIGH CAPACITY) EXTENSION ASSY ABRASIVE AND STANDARD, EU ONLY (88) - ACCESSORIES

84362491

DIA KIT, HARVESTER

DIA, Unloading Tube, High Capacity Extended Wear Abrasive (RFC), EU Only (See Page 80.180.18)

1шт.

84384623

SERVICE KIT

DIA, Unloading Tube, High Capacity Extended Wear, Standard, EU Only (See Page 80.180.18)

1шт.

1

84361669

TUBE ASSY.

RFC

1шт.

2

47395186

AUGER

Used In Kit 84362491

1шт.

2

47395184

AUGER

Used In Kit 84384623

1шт.

3

84307048

CAP COVER

1шт.

4

47392729

BRACKET

1шт.

5

86979948

FLANGE

2шт.

6

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

1шт.

8

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

4шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

12

86566989

CABLE TIE,208mm L

4шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

18

47411044

FLANGE BOLT,M16 x 95.4mm, Full Thd, Cl 10.9

10шт.

19

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

20шт.

20

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.
