Запчасти Case IH 7230 (88.060.04) - DIA KIT, FEEDER, CONVERT TO NRT (88) - ACCESSORIES

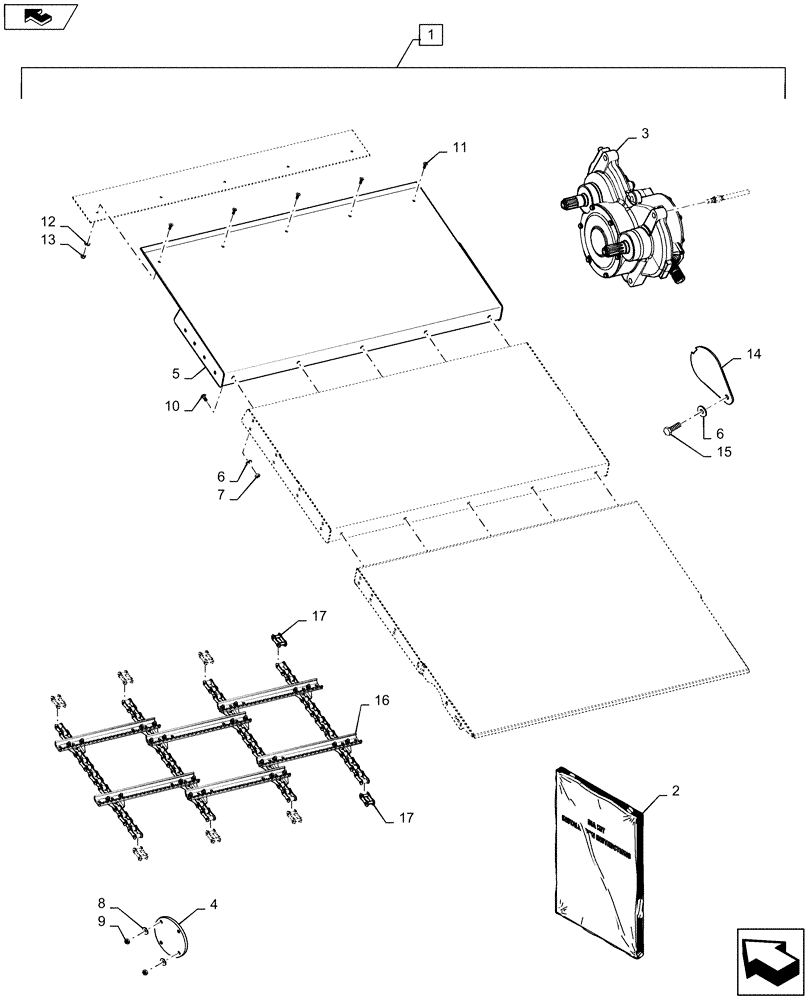

Схема запчастей Case IH 7230 - (88.060.04) - DIA KIT, FEEDER, CONVERT TO NRT (88) - ACCESSORIES
10
6
5
2
3
home
12
4
1
14
8
9
6
16
11
13
17
7
17
15

Артикул

Название

Примечание

Количество

1

84398278

SERVICE KIT

Feeder, Convert to NRT, Incl 2 - 17

1шт.

2

84398403

INSTRUCTION

Kit

1шт.

3

84224787

GEARBOX

Assembly

1шт.

4

86995710

COVER

Plate

2шт.

5

87730307

FLOOR

Rear Weld Assembly, Painted

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

7

100016

NUT,M10 x 1.5, Cl 8

5шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

9706685

NUT,M12 x 1.75, Cl 8

4шт.

10

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

5шт.

11

84814921

HEX SOC SCREW,CSS, M8 x 25mm, Cl 10.9

5шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

13

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

14

87281862

PLATE

Painted

1шт.

15

BER43139

BOLT

1шт.

16

84180958

CHAIN (AG)

Assembly

1шт.

17

84257096

LINK,41.4mm Pitch, Threaded Pin

8шт.

Выбрано товаров: 17
