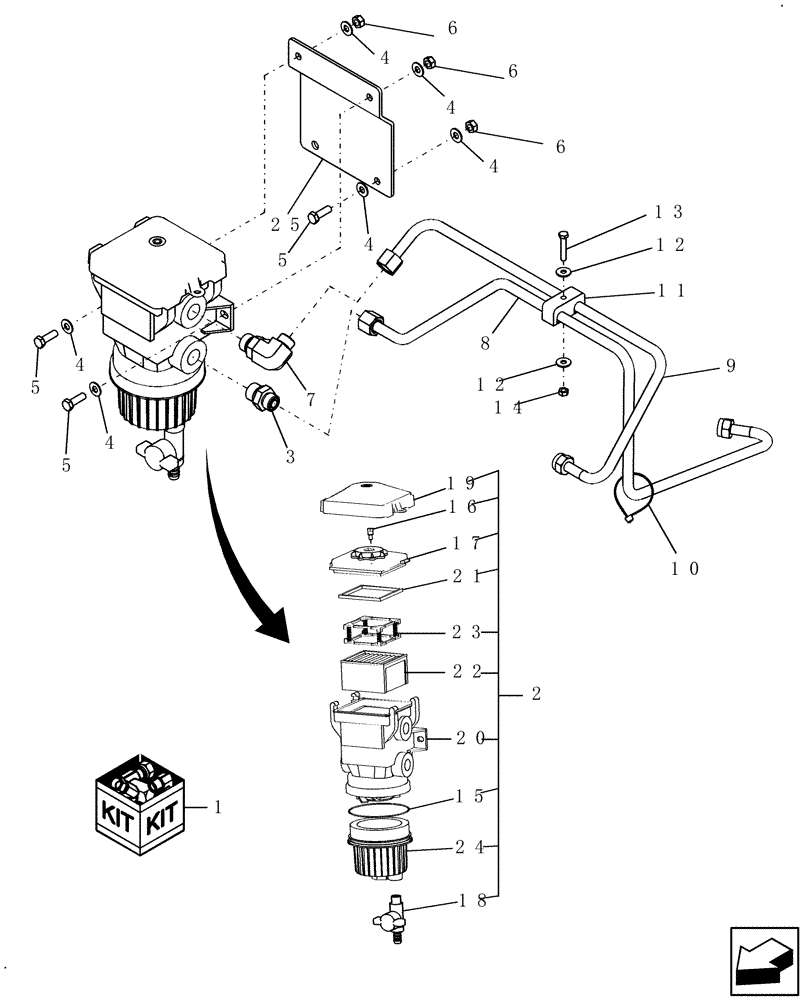

Запчасти Case IH 7230 (88.010.01) - DIA KIT: ADD ON FUEL WATER SEPATATOR (88) - ACCESSORIES

1

87755811

DIA KIT, HARVESTER

Kit, Additional Fuel Filter; Incl 2 - 24

1шт.

2

87734479

SEPARATOR

Filter, Fuel, Incl 15 - 24

1шт.

3

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

6

9706690

NUT,M8 x 1.25, Cl 8

3шт.

7

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

1шт.

8

87743283

HYD TUBE,.5" OD

Additional Fuel Filter

1шт.

9

87755808

HYD TUBE,12 mm OD x 351.6, 177.1 mm L

Additional Fuel Filter

1шт.

10

86566989

CABLE TIE,208mm L

1шт.

11

625822

CLAMP,1/2" Tube

1шт.

12

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

13

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

14

9706755

NUT,M6, Cl 8

1шт.

15

87473305

O-RING,0.07" Thk x 4.3" ID

1шт.

16

87474698

BLEEDER VALVE

Screw

1шт.

17

87473306

LID

Filter

1шт.

18

87473308

DRAIN VALVE

1шт.

19

87474697

COVER

Dust

1шт.

20

NSS

NOT SOLD SEPARAT

Body, Filter, Order Complete 87734479

1шт.

21

87333676

GASKET

Top Lid

1шт.

22

87409379

FUEL FILTER,30 Micron

Element, Additional Fuel

1шт.

23

87333679

SPRING

1шт.

24

87473304

BOWL

Water Sensor

1шт.
