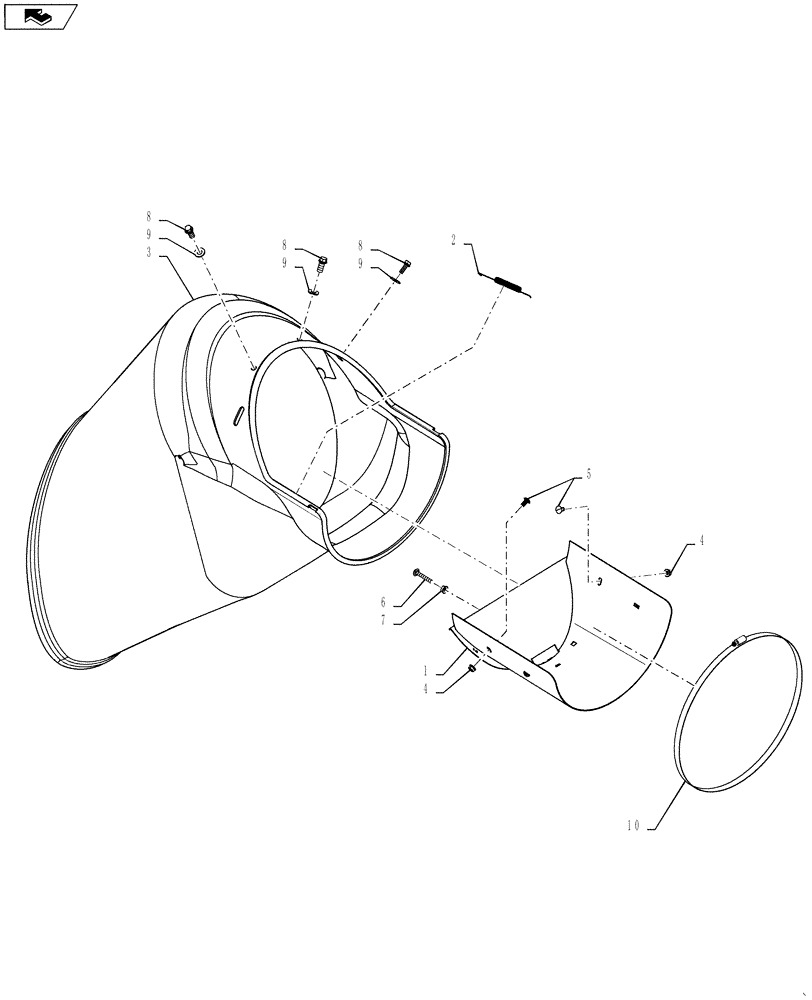

Запчасти Case IH 7230 (80.180.16) - UNLOADING SPOUT AND GRAIN SAVER (80) - CROP STORAGE/UNLOADING

1

84552506

DOOR

Grain Saver

1шт.

2

1338869C2

SPRING,162mm Free Length

2шт.

3

84322466

SPOUT

DISCHARGE SPOUT Unload

1шт.

4

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

5

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

4шт.

6

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

8

87698833

BOLT,M8 x 33.1mm, Cl 10.9

M8x25

4шт.

9

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

8.4x25x2mm

4шт.

10

84468366

CLAMP

1шт.
