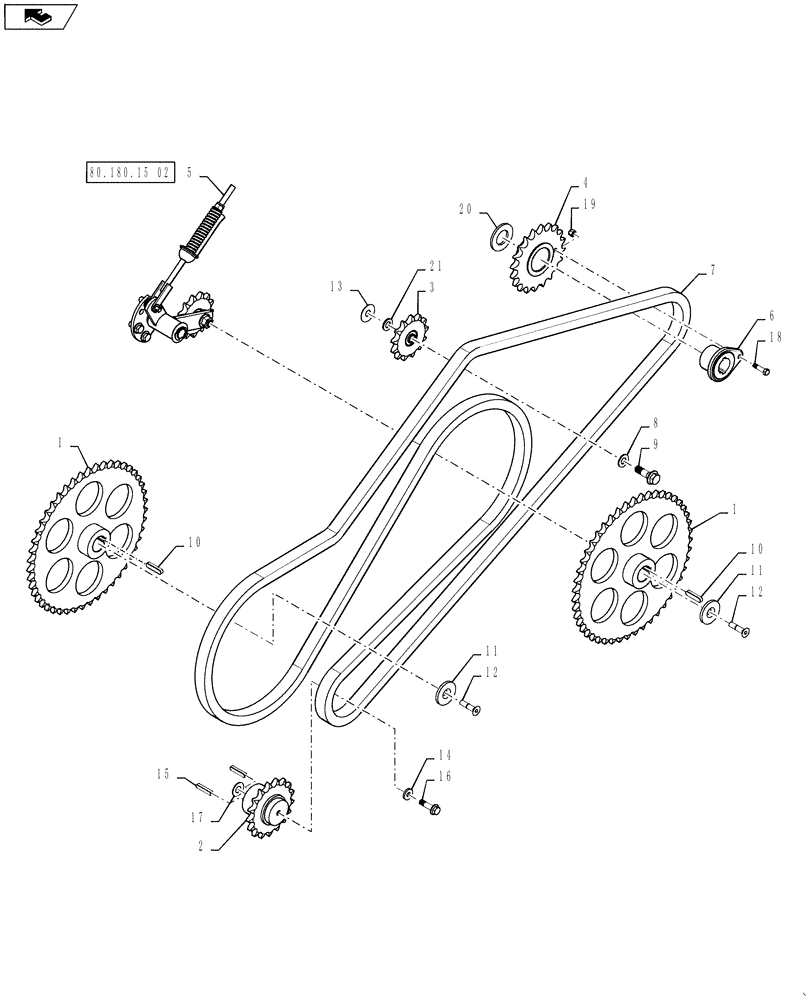

Запчасти Case IH 7230 (80.180.15) - UNLOAD CHAIN DRIVE, STANDARD (80) - CROP STORAGE/UNLOADING

1

84377231

SPROCKET

47 Tooth 80S

2шт.

2

84416055

SPROCKET,39.525mm ID x 154.1mm OD x 83.7mm Thk

17 Tooth 80S

1шт.

3

84401598

SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk

13 Tooth 80S

1шт.

4

84376918

SPROCKET,60.08mm ID x 178.16mm OD x 40mm Thk

20 Tooth 80S

1шт.

5

NSS

NOT SOLD SEPARAT

See Page 80.180.15(02)

1шт.

6

84376911

HUB

1шт.

7

84375704

CHAIN,80, 221 Links x 25.4mm = 5613.4mm

1шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

9

87698849

BOLT,M16 x 50mm, Cl 10.9

1шт.

10

170056

KEY,12mm W x 50mm OAL

2шт.

11

84351012

THRUST WASHER,13.5mm ID x 60mm OD x 6.35mm Thk

2шт.

12

87654459

SCREW

2шт.

13

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

1шт.

14

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

15

170012

KEY,8mm W x 50mm OAL

2шт.

16

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

1шт.

17

5119126

WASHER

1шт.

18

246309

SHEAR BOLT

Includes Nut

1шт.

19

88902

NUT,3/8"-16

1шт.

20

84377890

WASHER,38.2mm ID x 69.9mm OD x 5mm Thk

1шт.

21

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.
