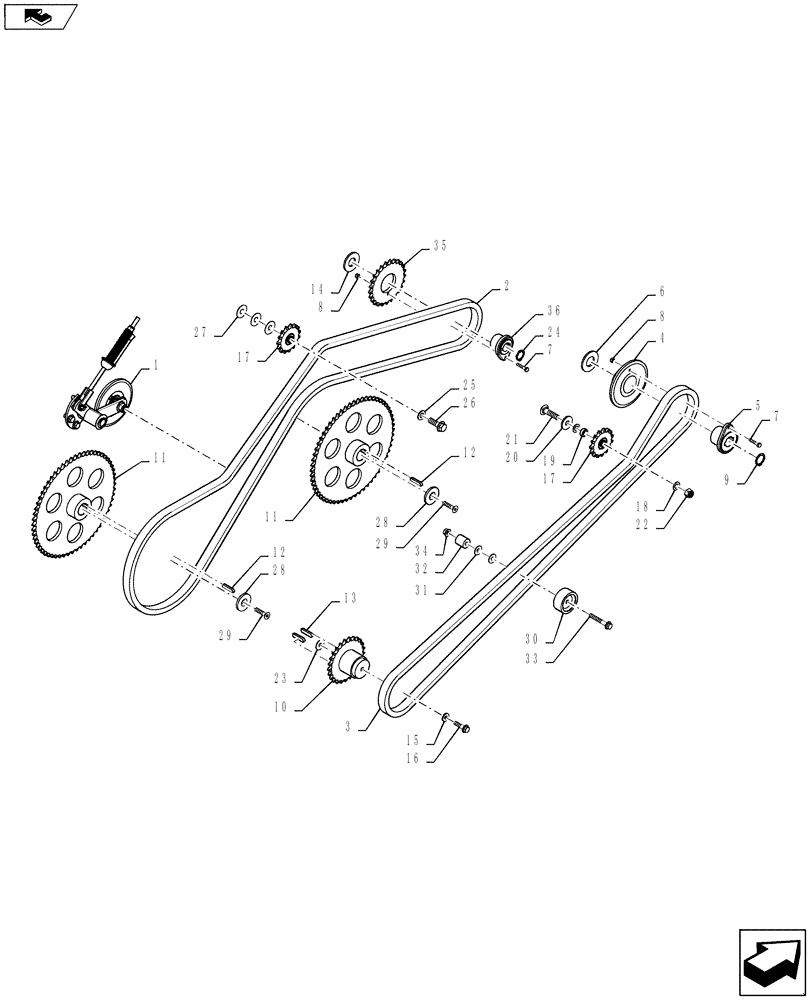

Запчасти Case IH 7230 (80.180.13) - UNLOAD CHAIN DRIVE, DUAL DRIVE (80) - CROP STORAGE/UNLOADING

1

NSS

NOT SOLD SEPARAT

Order Components, See Page 80.180.12(02)

1шт.

2

84351953

CHAIN,60H, 192 Links x 19.05mm = 3658mm

4.5 BU/S, 9230 Only

1шт.

2

84345681

CHAIN,60H, 199 Links x 19.05mm = 3791mm

4.0 BU/S, 72/8230

1шт.

3

84525580

CHAIN,60H, 167 Links x 19.05mm = 3181.4mm

Industrail Standard 60H, 167 links

1шт.

4

84069795

SPROCKET

25 Tooth

1шт.

5

84073176

SHEAR BOLT BUSHING

1шт.

6

84073175

WASHER,35.1mm ID x 71.5mm OD x 5mm Thk

1шт.

7

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

9

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

10

84415711

SPROCKET

25 Tooth

1шт.

11

84345679

SPROCKET

60 Tooth, 4.0 BU/S, 72/8230 Only

2шт.

11

84308147

SPROCKET

51 Tooth, 4.5 BU/S 9230 Only

2шт.

12

170056

KEY,12mm W x 50mm OAL

2шт.

13

170012

KEY,8mm W x 50mm OAL

2шт.

14

84373836

WASHER

1шт.

15

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

1шт.

16

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

1шт.

17

86627639

SPROCKET,15T

2шт.

18

34821

WASHER,17.86mm ID x 28.57mm OD x 1.52mm Thk

2шт.

19

86582836

SPACER

1шт.

20

86519909

WASHER,17mm ID x 46mm OD x 5mm Thk

1шт.

21

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

22

86000441

NUT,M16 x 2.0, Cl 8

1шт.

23

5119126

WASHER

1шт.

24

370003

SNAP RING,M30, External

1шт.

25

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

26

87698849

BOLT,M16 x 50mm, Cl 10.9

1шт.

27

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

3шт.

28

84351012

THRUST WASHER,13.5mm ID x 60mm OD x 6.35mm Thk

2шт.

29

87654459

SCREW

2шт.

30

334970

IDLER,75mm OD

1шт.

31

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

2шт.

32

84263247

SPACER

1шт.

33

87698846

BOLT,Hvy Hex Flg, M12 x 80mm, Cl 10.9

1шт.

34

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

35

84373834

SPROCKET

25 Tooth

1шт.

36

84370481

HUB

1шт.
