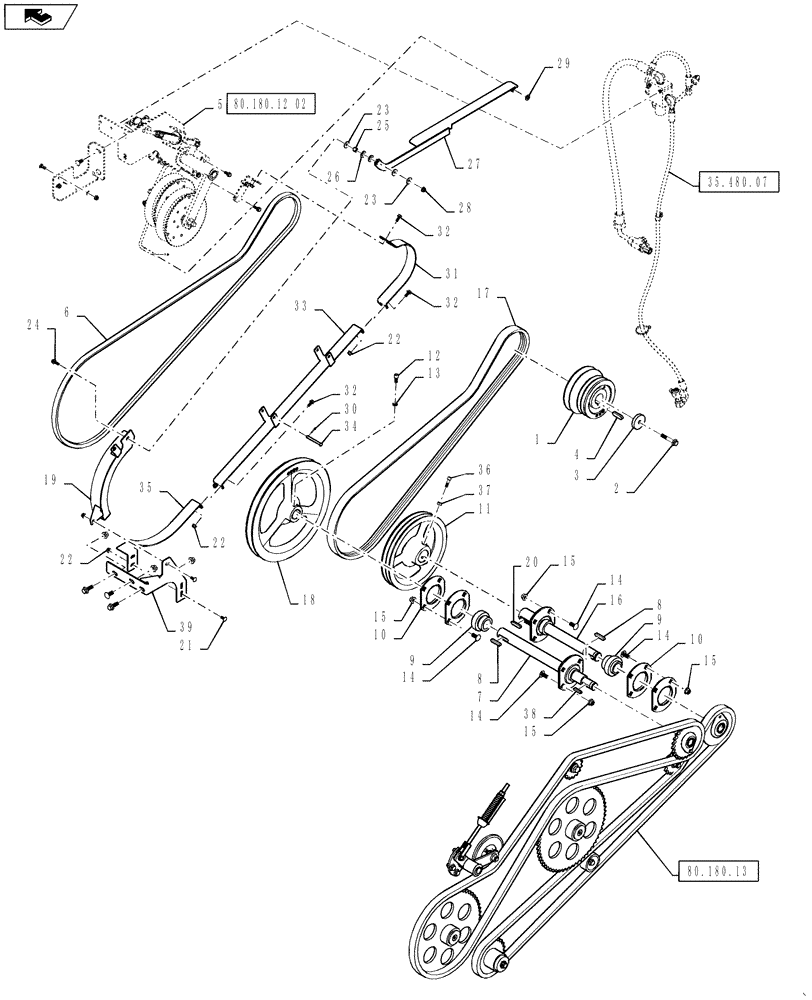

Запчасти Case IH 7230 (80.180.12) - UNLOADING DRIVE,DUAL DRIVE (80) - CROP STORAGE/UNLOADING

1

84256377

PULLEY

1шт.

2

87698845

BOLT,M12 x 70, Cl 10.9

1шт.

3

84073172

WASHER,13mm ID x 60mm OD x 12mm Thk

1шт.

4

170066

KEY,14mm W x 50mm OAL x 9mm Thk

1шт.

5

NSS

NOT SOLD SEPARAT

Tensioner, See Page 80.180.13

1шт.

6

84345673

BELT

1шт.

7

84256380

SHAFT

1шт.

8

170012

KEY,8mm W x 50mm OAL

4шт.

9

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

4шт.

10

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

8шт.

11

87032102

PULLEY

1шт.

12

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

1шт.

13

84221258

THIN NUT,M10 x 1.5, Cl 5

1шт.

14

87685426

BRACKET

16шт.

15

86512497

FLANGE NUT,M12 x 1.75, Cl 10

16шт.

16

84345675

SHAFT

1шт.

17

84345674

BELT

1шт.

18

84256359

PULLEY

1шт.

19

84486268

GUIDE

1шт.

20

170056

KEY,12mm W x 50mm OAL

1шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

23

86632582

WASHER,0.34" ID x 1" OD x 0.06" Thk

2шт.

24

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

25

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

26

87613181

WASHER,0.53" ID x 1" OD x 0.06" Thk

3шт.

27

84345578

BRACKET, SUPPORTING

1шт.

28

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

29

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

30

80756

COTTER PIN,1/8" x 3/4"

3шт.

31

84345572

BRACKET, SUPPORTING

1шт.

32

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

7шт.

33

84345570

GUIDE

1шт.

34

439-1548

HEADED PIN,7.92mm OD x 76.2mm L

2шт.

35

84348728

SUPPORT

1шт.

36

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

2шт.

37

43362

NUT,M8 x 1.25, Cl 10

2шт.

38

170008

KEY,8mm W x 40mm OAL

2шт.

39

84475427

BRACKET

1шт.
