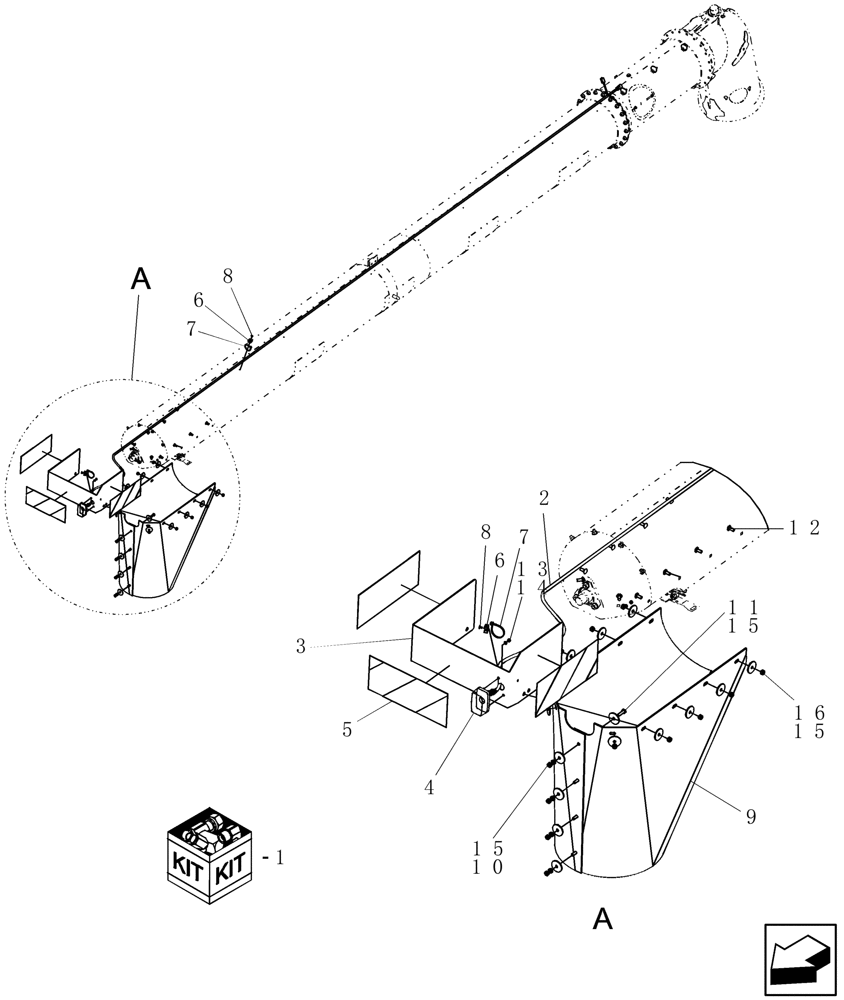

Запчасти Case IH 7230 (80.180.07) - UNLOADER VERTICAL DISCHARGE (80) - CROP STORAGE/UNLOADING

1

84158659

DIA KIT, HARVESTER

Vertical Discharge

1шт.

2

87479791

WIRE HARNESS

Unloading Tube

1шт.

3

84452652

SUPPORT

1шт.

4

84429842

LAMP

1шт.

5

84441358

DECAL

3шт.

6

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

7

86566989

CABLE TIE,208mm L

2шт.

8

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

9

84064911

CANVAS,1288.3mm W x 1396.9mm L

1шт.

10

9706690

NUT,M8 x 1.25, Cl 8

8шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

10шт.

13

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

14

140014

WASHER,M5 x 10mm OD x 1mm Thk

2шт.

15

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

18шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

10шт.
