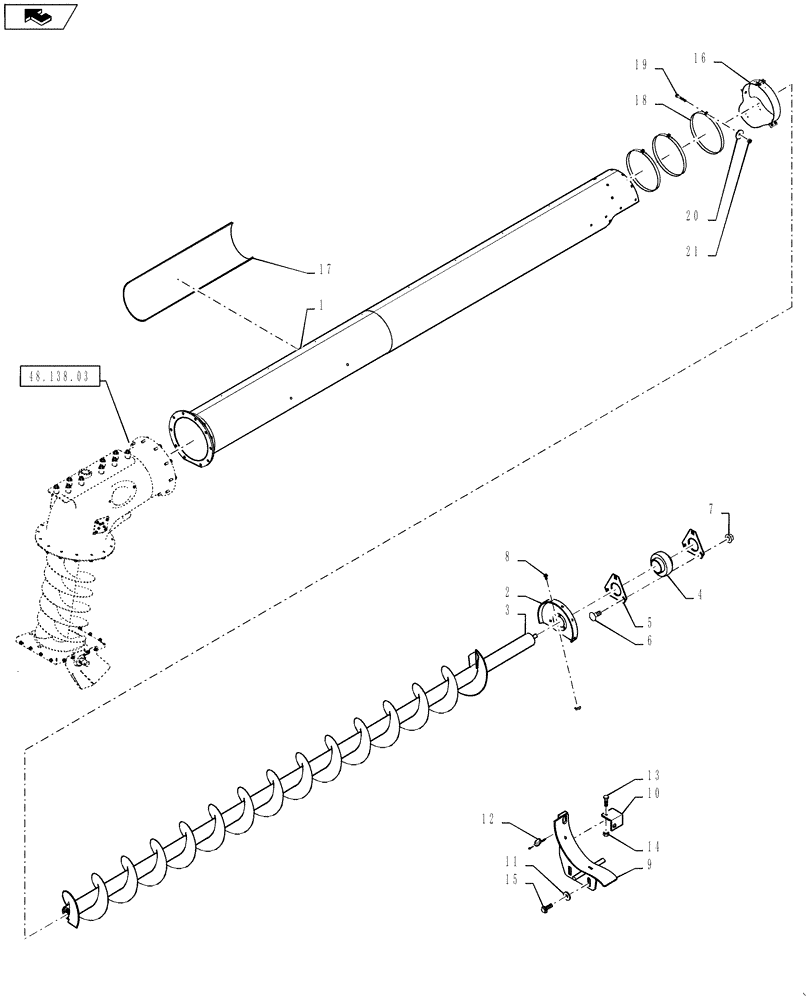

Запчасти Case IH 7230 (80.180.03) - UNLOADING AUGER, HORIZONTAL, HC VERSIONS (80) - CROP STORAGE/UNLOADING

1

84468397

UNLOADING TUBE

1шт.

1

84470872

UNLOADING TUBE

Perforated

1шт.

2

84416907

COVER

1шт.

3

47373693

AUGER

1шт.

3

47373691

AUGER

Extended Wear

1шт.

4

87598793

BEARING

1шт.

5

84414986

FLANGE

2шт.

6

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

9шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

9

84485433

CRADLE

1шт.

10

84521998

BRACKET

1шт.

11

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

3шт.

12

87106279

PIN,6.4mm OD

1шт.

13

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

14

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

15

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

3шт.

16

84522169

SECURING STRAP,388.8mm ID

1шт.

17

84399226

COVER

For Perf Tube

1шт.

18

84399231

CLAMP

For Perf Tube Cover

4шт.

19

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

4шт.

20

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.
