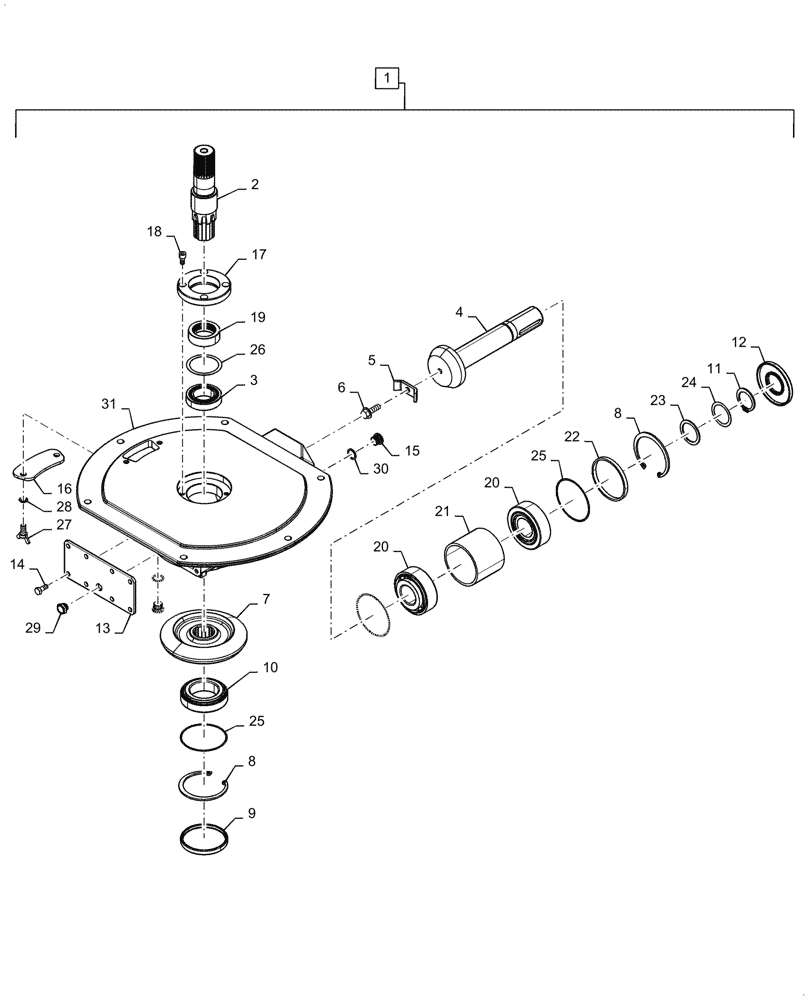

Запчасти Case IH 7230 (80.175.07[02]) - UNLOADING AUGER, GEARBOX, LOWER, HC VERSION (80) - CROP STORAGE/UNLOADING

1

84262053

GEARBOX ASSY

Unloading Auger, Lower, HC, Incl 2 - 31

1шт.

2

84376256

SHAFT

Output, 24T

1шт.

3

86626475

BEARING ASSY,40mm ID x 68mm OD x 19mm W

1шт.

4

84376257

SHAFT

Pinion, 21T

1шт.

5

86623220

PLATE

Blade

1шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

7

84376258

BEVEL GEAR

42T

1шт.

8

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

9

86623227

COVER

Cap

1шт.

10

853116

TAPERED BEARING

55mm x 90mm x 23mm

1шт.

11

440442

SNAP RING,M40 x 2.5mm Thk, External

1шт.

12

86623230

RUBBER SEAL

Oil

1шт.

13

86623224

COVER

Rear

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

15

47569828

HEX SOCKET PLUG

Drain

2шт.

16

86623226

COVER

Top

1шт.

17

86623222

FLANGE

Top Shaft

1шт.

18

86566099

HEX SOC SCREW,M8 x 16mm, Cl 12.9

4шт.

19

86623221

RUBBER SEAL,38.9mm ID x 60mm OD x 18.5mm Thk

1шт.

20

87055660

TAPERED BEARING

Roller

2шт.

21

84376259

SPACER,81mm ID x 89mm OD x 71.9mm OAL

1шт.

22

86623215

SPACER,81mm ID x 89.8mm OD x 7mm OAL

1шт.

23

86623231

SHIM,17.2mm ID x 24.9mm OD x 0.3mm Thk

1шт.

24

86623229

SHIM KIT

Input Shaft

1шт.

25

86623216

SHIM

Set

3шт.

26

86623218

SHIM KIT

Output Shaft

1шт.

27

412049

SCREW,M10 x 16mm

2шт.

28

9511037

SEAL

Washer

2шт.

29

84548648

PLUG

Sight Level

1шт.

30

322645950

SEALING WASHER,17mm ID x 22mm OD x 1.5mm Thk

2шт.

31

84414488

HOUSING

Gearbox

1шт.
