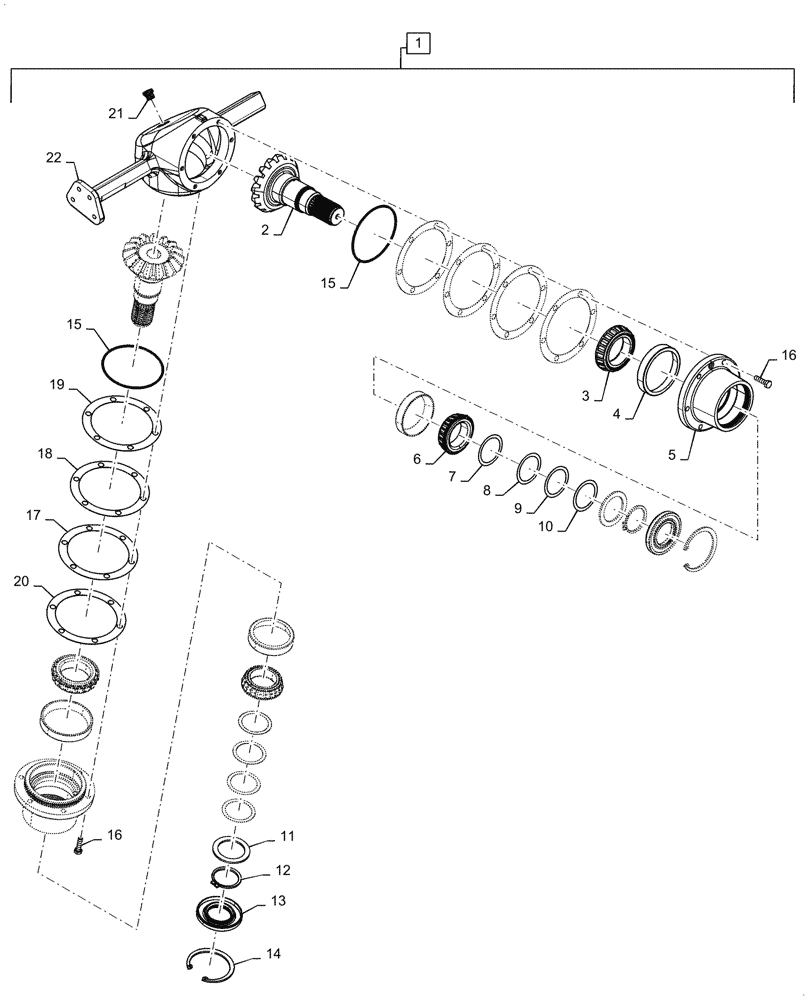

Запчасти Case IH 7230 (80.175.06[02]) - UPPER UNLOADER GEARBOX, HC VERSION (80) - CROP STORAGE/UNLOADING

1

84262051

GEARBOX ASSY

Upper Unloader, HC Version, Incl 2 - 22

1шт.

2

84356777

BEVEL GEAR

Upper Unloader

2шт.

3

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

2шт.

4

105497H

BEARING CUP,96.85mm OD x 15.77mm W

2шт.

5

84356776

HOUSING

Bearing

2шт.

6

796504

TAPERED BEARING,50mm ID x 95mm OD x 21.75mm W

1шт.

7

87025487

SHIM,50mm ID x 62mm OD x 0.1mm Thk

2шт.

8

87033533

SHIM,50mm ID x 62mm OD x 0.15mm Thk

2шт.

9

87025488

SHIM,50mm ID x 62mm OD x 0.3mm Thk

2шт.

10

87025489

SHIM,50mm ID x 62mm OD x 0.5mm Thk

2шт.

11

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

2шт.

12

86625142

CIRCLIP,M50, External

2шт.

13

87610910

OIL SEAL,45mm ID x 85mm OD x 10mm Thk

2шт.

14

370021

SNAP RING,M85 x 3mm Thk, Internal

2шт.

15

14461480

O-RING,4.237" ID x 0.103" Thk

2шт.

16

84365541

BOLT,M8 x 1.25 x 35.45mm, Cl 10.9

12шт.

17

84555694

SHIM,116mm ID x 148mm OD x 0.30mm Thk

2шт.

18

84555695

SHIM,116mm ID x 148mm OD x 0.35mm Thk

2шт.

19

84555696

SHIM,116mm ID x 148mm OD x 0.40mm Thk

2шт.

20

84555697

SHIM,116mm ID x 148mm OD x 0.45mm Thk

2шт.

21

86598044

PLUG,Hex, M14 x 1.5 ORB

1шт.

22

84355215

CASTING

Gearbox

1шт.
