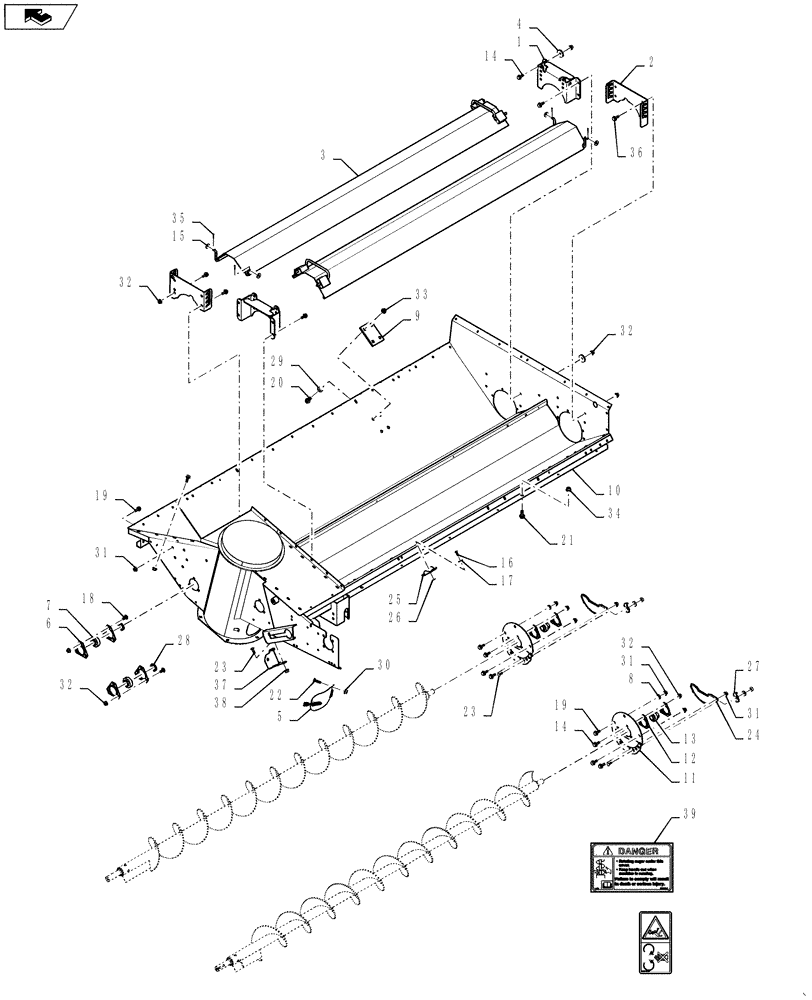

Запчасти Case IH 7230 (80.150.11) - GRAIN TANK - BOTTOM AND AUGERS (80) - CROP STORAGE/UNLOADING

1

86975993

BRACKET

2шт.

2

86975994

BRACKET

2шт.

3

86975412

COVER

2шт.

4

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3шт.

5

87583588

COVER ASSY

1шт.

6

84414985

FLANGED BEARING

4шт.

7

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

8

86588500

WASHER,9mm ID x 16mm OD x 2mm Thk

6шт.

9

87665292

PLATE

1шт.

10

84386325

GRAIN TANK

1шт.

11

87342517

BEARING COVER

2шт.

12

84414986

FLANGE

4шт.

13

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

2шт.

14

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

14шт.

15

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

16

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

17

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

2шт.

18

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

6шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

18шт.

20

87695413

BOLT,M12 x 51.8mm, Cl 10.9

4шт.

21

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

6шт.

22

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

2шт.

23

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

11шт.

24

87342513

COVER

2шт.

25

362786

FASTENER

2шт.

26

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

27

425093

CLAMP

6шт.

28

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

29

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

4шт.

30

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

31

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

32

86050279

FLANGE NUT,M10 x 1.5, Cl 10

21шт.

33

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

34

86512498

FLANGE NUT,M16 x 2, Cl 10

6шт.

35

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

36

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

37

84178875

BRACKET

1шт.

38

87681210

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

39

86640420

DANGER DECAL

NA ONLY

1шт.

84004736

DANGER DECAL

EU ONLY

1шт.
