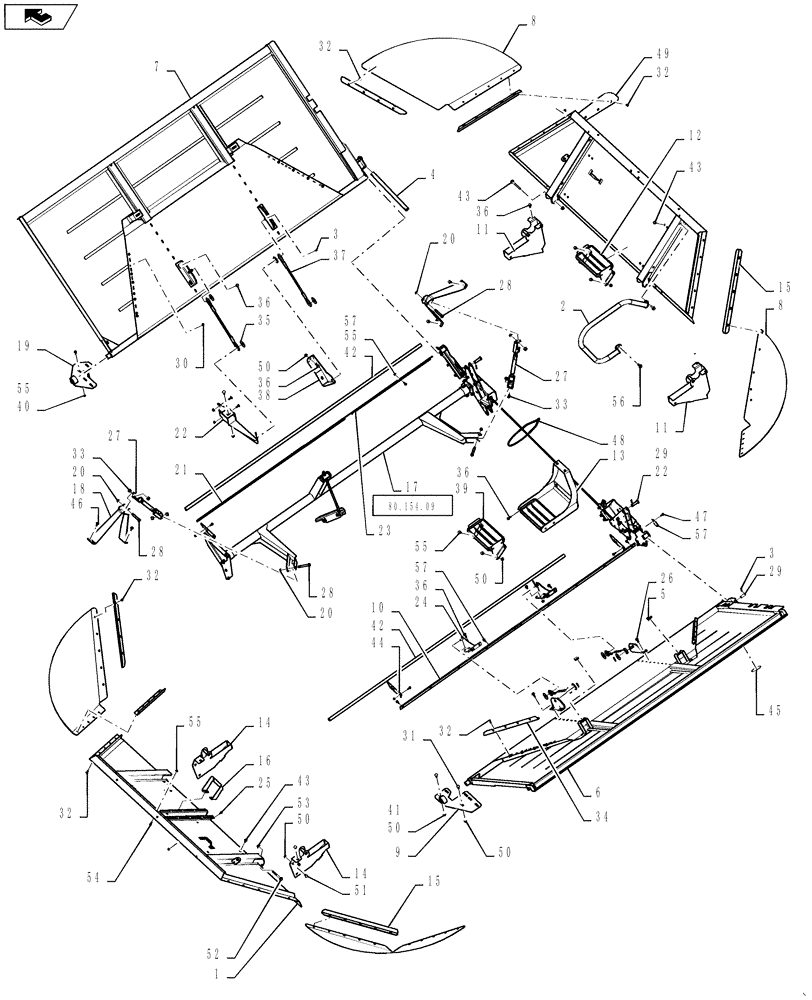

Запчасти Case IH 7230 (80.150.07) - GRAIN TANK COVERS, 315 & 350 BUSHEL (80) - CROP STORAGE/UNLOADING

1

84399508

EXTENSION

24 IN, 315 BUSHEL

2шт.

84399505

EXTENSION

27 IN, 350 BUSHEL

2шт.

2

84510294

HANDLE

1шт.

3

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

12шт.

4

84152697

UPPER LINK,17.46mm ID x 423mm L

2шт.

5

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

4шт.

6

84387538

COVER ASSY

LH

1шт.

87556665

BEARING,31.773mm ID x 35.7mm OD x 25.4mm Thk

COMPONENT OF PART # 84387538

1шт.

7

84276252

COVER ASSY

RH

1шт.

87556665

BEARING,31.773mm ID x 35.7mm OD x 25.4mm Thk

COMPONENT OF PART # 84276252

1шт.

8

86975520

SHEET

24 IN, 315 BUSHEL

4шт.

86975734

SHEET

27 IN, 350 BUSHEL

4шт.

9

84510307

HALF-HINGE

1шт.

87556665

BEARING,31.773mm ID x 35.7mm OD x 25.4mm Thk

COMPONENT OF PART # 84510307

1шт.

10

84355676

BRACKET,1134mm L

2шт.

11

84174215

HINGE

2шт.

12

84393348

STEP

1шт.

13

84395879

STEP

1шт.

14

87552212

HINGE

2шт.

15

86975516

ANGLE

315 BUSHEL

4шт.

86975514

ANGLE

350 BUSHEL

4шт.

16

86975897

BRACKET

1шт.

17

NSS

NOT SOLD SEPARAT

1шт.

18

87491039

BRACKET

2шт.

19

84187744

HINGE

1шт.

20

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

21

84403643

STRIP,1043.8mm L

RH Front Strip

1шт.

21

84258603

ANGLE

LH Front Strip

1шт.

22

84187736

BRACKET

1шт.

23

84403645

SEALING STRIP,1220mm L

RH Rear Strip

1шт.

23

84258607

ANGLE

LH Rear Strip

1шт.

24

84359872

ANCHOR

2шт.

25

86975528

BRACKET

315 BUSHEL

1шт.

86975526

BRACKET

350 BUSHEL

1шт.

26

84194824

ANGLE

4шт.

27

87479911

DRAG LINK

2шт.

28

84182839

SCREW,M10 x 1.5 x 66.70mm, Heat Treated Steel

4шт.

29

362528

CLEVIS PIN,M16 x 55mm OAL

4шт.

30

86610200

THREADED INSERT,M8 x 1.25

16шт.

31

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

2шт.

32

86975890

SCREW,Torx, Pan HD, M8 x 1.25 x 20mm, Cl 8.8

36шт.

33

87348842

SPACER,13.5mm ID x 19.18mm OD x 13.2mm L

8шт.

34

84165687

ANGLE

4шт.

35

87613264

WASHER,0.53" ID x 2" OD x 0.12" Thk

8шт.

36

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

27шт.

37

84180932

CABLE RETAINER,453mm L

4шт.

38

84187730

BRACKET, SUPPORTING

RH

1шт.

38

84187731

BRACKET, SUPPORTING

LH (Not Shown)

1шт.

39

84393346

STEP

1шт.

40

87698833

BOLT,M8 x 33.1mm, Cl 10.9

5шт.

41

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

7шт.

42

84234742

DOOR SEAL,22mm OD x 2286mm L

2шт.

43

87021006

BOLT,M10 x 26.4mm, Cl 10.9

12шт.

44

84326991

PLATE

4шт.

45

84432904

DECAL

1шт.

46

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

18шт.

47

84391053

SHEET

2шт.

48

801895

CABLE TIE,30.63"

1шт.

49

84385052

SHEET

315 BUSHEL

1шт.

84385050

SHEET

350 BUSHEL

1шт.

50

86050279

FLANGE NUT,M10 x 1.5, Cl 10

28шт.

51

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

6шт.

52

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

4шт.

53

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

4шт.

54

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

5шт.

55

86507066

FLANGE NUT,M8 x 1.25, Cl 10

28шт.

56

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

57

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

36шт.
