Запчасти Case IH 7230 (80.101.26) - AUGER SPRING & CABLE, BUBBLE-UP AUGER DRIVE (80) - CROP STORAGE/UNLOADING

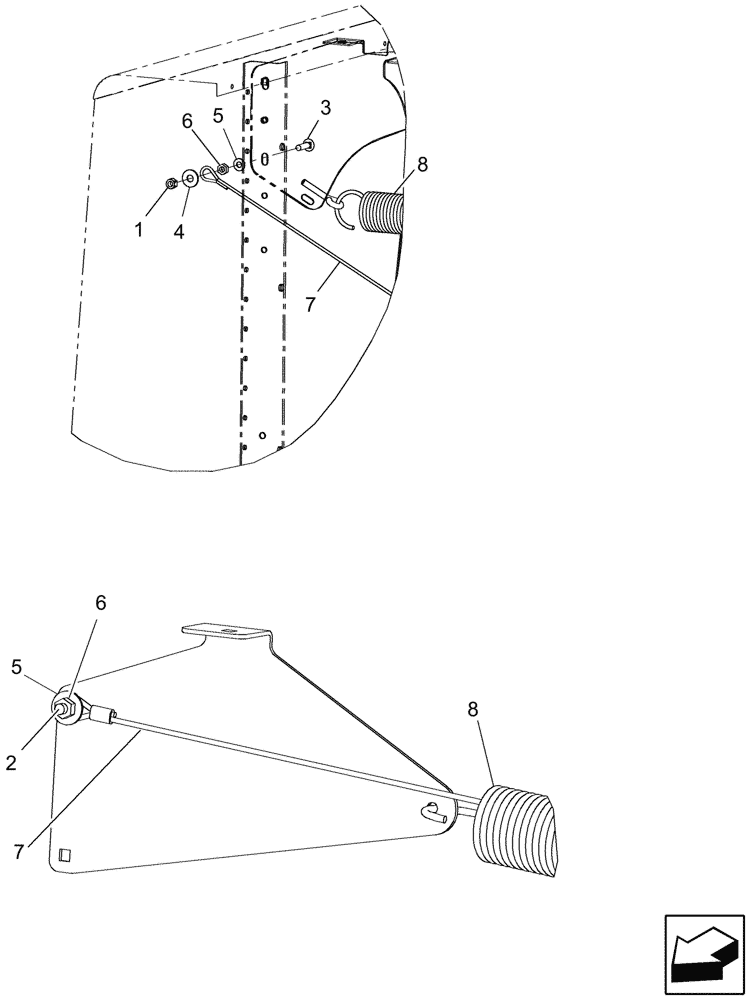

Схема запчастей Case IH 7230 - (80.101.26) - AUGER SPRING & CABLE, BUBBLE-UP AUGER DRIVE (80) - CROP STORAGE/UNLOADING
3
1
8
7
2
6
8
5
5
4
6
7

Артикул

Название

Примечание

Количество

1

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

2

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

3

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

4

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

100016

NUT,M10 x 1.5, Cl 8

1шт.

7

87668051

CABLE ASSY.,1000mm L

Top of Art, Used W/O Grain Tank Covers

1шт.

7

87107054

CABLE,1350mm L

Bottom of Art, Used W/ Grain Tank Covers

1шт.

8

86975571

SPRING,Extension, 72.4mm OD x 356mm L

1шт.

Выбрано товаров: 9
