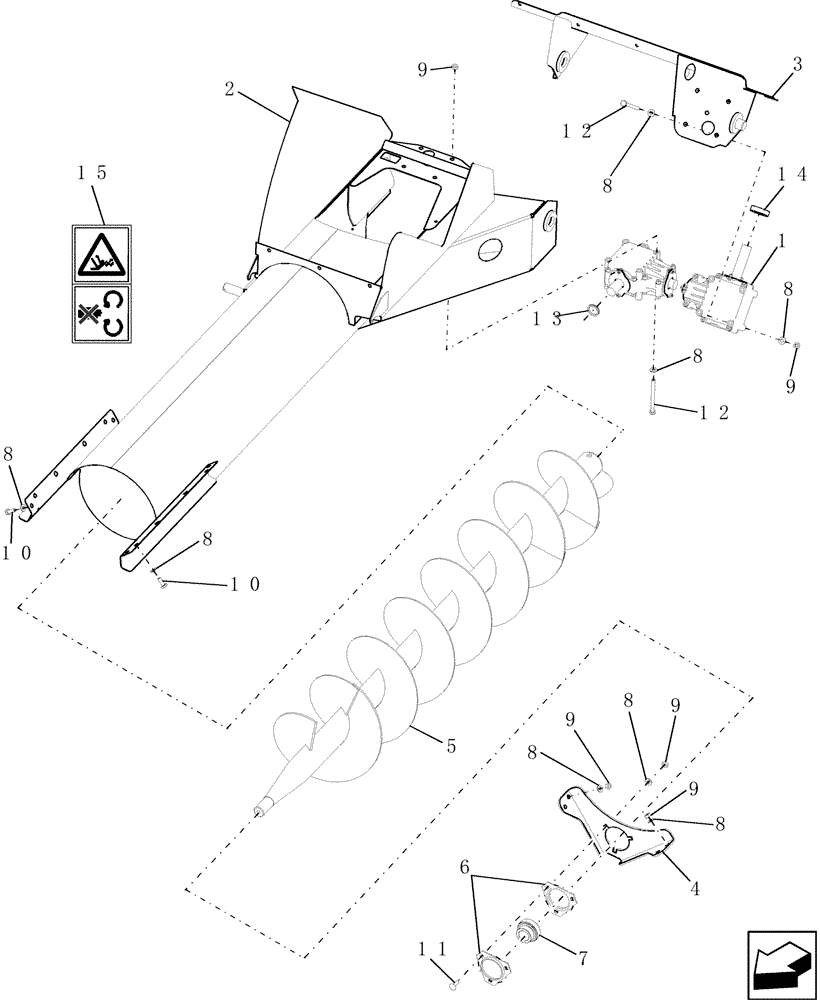

Запчасти Case IH 7230 (80.101.10[01]) - BUBBLE-UP AUGER (80) - CROP STORAGE/UNLOADING

1

87721343

GEARBOX

Bubble Up Auger Drive

1шт.

1

87721343R

REMAN-GEARBOX

Bubble Up Auger Drive

1шт.

1

87721343C

CORE-GEARBOX

Return Number

1шт.

2

84386327

BUBBLE-UP

Tube, Standard Wear, Incl 15

1шт.

2

84403642

BUBBLE-UP

Tube, Extended Wear, Incl 15

1шт.

3

87720826

SUPPORT

Standard

1шт.

3

84524970

SUPPORT

High Capacity

1шт.

For High Capacity See Figure 80.150.03 (04)

1шт.

4

86998682

BRACKET

1шт.

5

87106615

AUGER

Std Wear, L = 2072 mm

1шт.

5

87733275

AUGER

Extended Wear W/ RFC, L = 2072 mm

1шт.

6

84414985

FLANGED BEARING

2шт.

7

87605590

BEARING ASSY,35mm ID x 72mm OD x 19mm W

1шт.

87016482

SET SCREW,M10 x 10mm

Not Shown, Incl W/ Ref 7

1шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

23шт.

9

100016

NUT,M10 x 1.5, Cl 8

15шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

11

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

3шт.

12

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

8шт.

13

87280933

SEAL,28.96mm ID x 37.08mm OD x 7.62mm Thk

1шт.

14

87282653

SEAL,38mm ID x 68mm OD x 32mm Thk

1шт.

15

84004736

DANGER DECAL

1шт.
