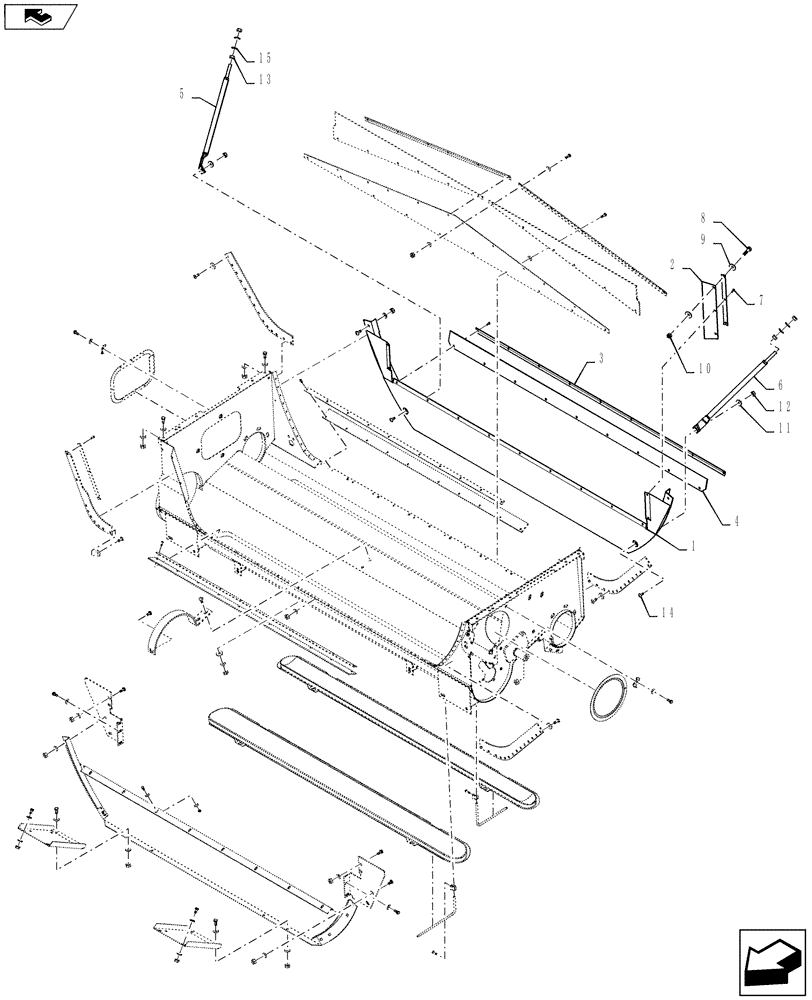

Запчасти Case IH 7230 (74.140.14[03]) - SELF-LEVELING AUGER HOUSING, REAR SEALS (74) - CLEANING

1

84320102

PLATE

1шт.

2

922272

SEAL PROTECTION

2шт.

3

84320105

STRIP

1шт.

4

84818311

SEAL PROTECTION

1шт.

5

444439

SUPPORT

1шт.

6

444438

SUPPORT

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

13шт.

8

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

9

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

353308

NUT,M6 x 1.0, Cl 8

2шт.

11

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

4шт.

12

9706690

NUT,M8 x 1.25, Cl 8

4шт.

13

9706685

NUT,M12 x 1.75, Cl 8

4шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.
