Запчасти Case IH 7230 (74.140.14[02]) - AUGER BED, CLEAN GRAIN ELEVATOR, SEAL, FRONT (74) - CLEANING

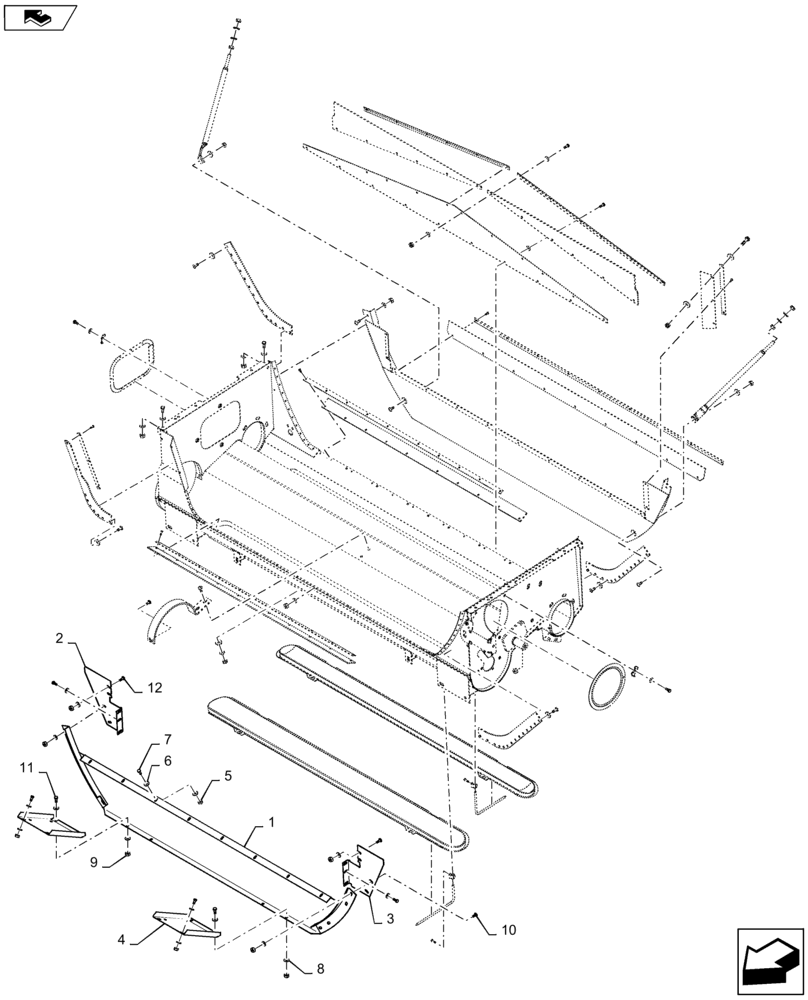

Схема запчастей Case IH 7230 - (74.140.14[02]) - AUGER BED, CLEAN GRAIN ELEVATOR, SEAL, FRONT (74) - CLEANING
9
10
6
12
7
3
11
8
1
5
4
2

Артикул

Название

Примечание

Количество

1

84320100

PLATE

Auger Housing, Front

1шт.

2

87370003

PLATE

Auger Housing, Front, RH Support

1шт.

3

87370005

PLATE

Auger Housing, Front, LH Support

1шт.

4

87658114

SUPPORT

Auger Housing, Front Plate

2шт.

5

9706755

NUT,M6, Cl 8

8шт.

6

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

8

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

28шт.

9

9706690

NUT,M8 x 1.25, Cl 8

16шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

12

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

Выбрано товаров: 12
