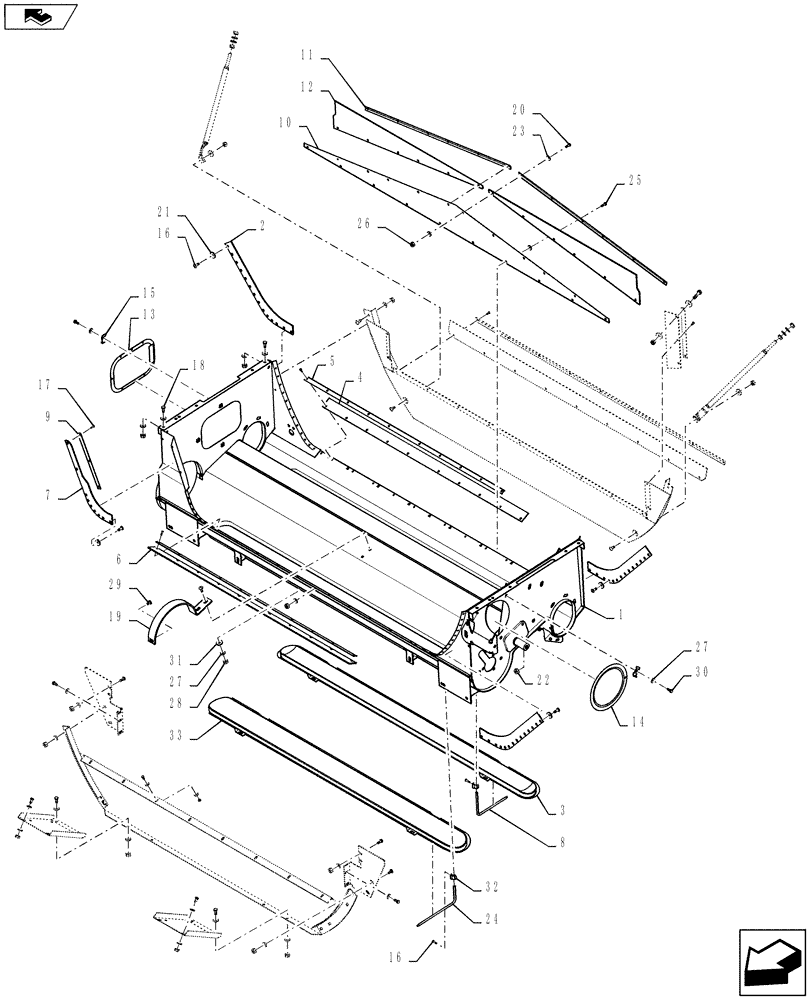

Запчасти Case IH 7230 (74.140.14[01]) - SELF-LEVELING AUGER HOUSING, MAIN BODY (74) - CLEANING

1

84525091

HOUSING

Auger Bed Assy

1шт.

2

87282881

SEAL PROTECTION

3шт.

3

84078027

COVER

1шт.

3

84429238

COVER

Round Holes

1шт.

3

740667

COVER

Slotted Holes

1шт.

4

451792

SEAL PROTECTION

1шт.

5

84320089

STRIP

Slat

2шт.

6

451794

SEAL PROTECTION,50mm W x 1275mm OAL x 4mm Thk

1шт.

7

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

1шт.

8

9819720

PIN,7.94mm OD

2шт.

9

84320082

SLAT

Slat

3шт.

10

87696056

MOUNTING PLATE

1шт.

11

84320079

STRIP

Slat

2шт.

12

87552399

SEAL PROTECTION

2шт.

13

84320078

DOOR

1шт.

14

84320087

DOOR

1шт.

15

425093

CLAMP

6шт.

16

87658114

SUPPORT

52шт.

17

87282880

SEAL

25шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

19

84072271

SUPPORT

1шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

10шт.

21

140182

WASHER,5.5mm ID x 18mm OD x 2mm Thk

48шт.

22

9706755

NUT,M6, Cl 8

8шт.

23

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

36шт.

24

9819719

PIN,7.94mm OD

2шт.

25

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

8шт.

26

353308

NUT,M6 x 1.0, Cl 8

10шт.

27

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

29шт.

28

9706690

NUT,M8 x 1.25, Cl 8

13шт.

29

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

3шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

13шт.

31

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

32

323307

CLAMP

4шт.

33

87693856

COVER

1шт.

33

84429240

COVER

Round Holes

1шт.

33

740666

COVER

Slotted Holes

1шт.

34

87743232

DIA KIT, HARVESTER

Hard Thresh tailings, Rought Through Cover For Tailings Auger Plus Bottom Of Tri-Sweep

1шт.

35

87743231

DIA KIT, HARVESTER

Same As Kit 87743232 Except The Tri-Sweep Tailings Door Is High Wear

1шт.
