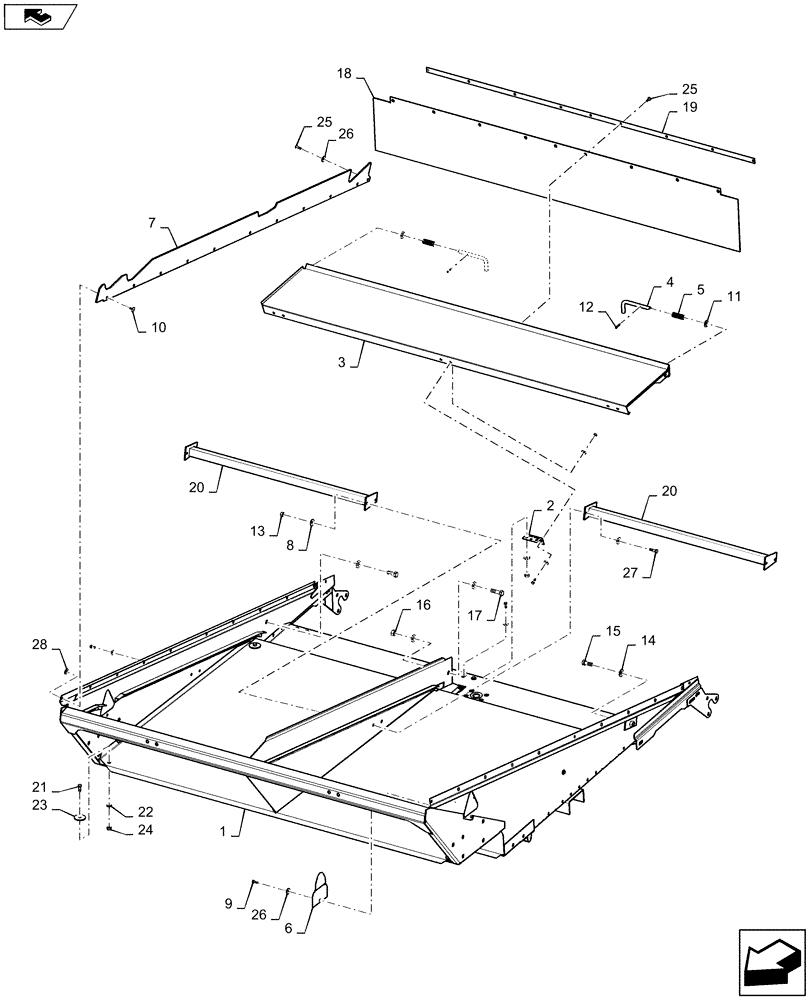

Запчасти Case IH 7230 (74.101.12) - LOWER SHOE DRIVE (74) - CLEANING

1

84390370

SHAKER SHOE

Lower

1шт.

2

86529373

HINGE

Butt

3шт.

3

84390706

COVER

Rear Seal

1шт.

4

394549

HANDLE,12mm OD

Lock Pin

2шт.

5

84814911

SPRING

Compression

2шт.

6

87535684

COVER

Shaker Shoe, Side

2шт.

7

87585352

CANVAS,90mm W x 1985mm OAL

Rubber

2шт.

8

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

36шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

18шт.

10

9512968

RIVET,Pop, 4.8mm OD x 11.2mm L

5mm

2шт.

11

140223

WASHER,M13 x 25mm OD x 2mm Thk

2шт.

12

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

13

9706755

NUT,M6, Cl 8

18шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

16

9706685

NUT,M12 x 1.75, Cl 8

1шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

18

87105832

CANVAS,250mm W x 1585mm OAL

Rubber

1шт.

19

87000280

STRIP

Rear Seal

1шт.

20

84320452

PROFILE

Support

2шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

23

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

4шт.

24

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

25

84446204

RIVET,Pop, 6.28mm OD x 19.5mm L

29шт.

26

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

2шт.
