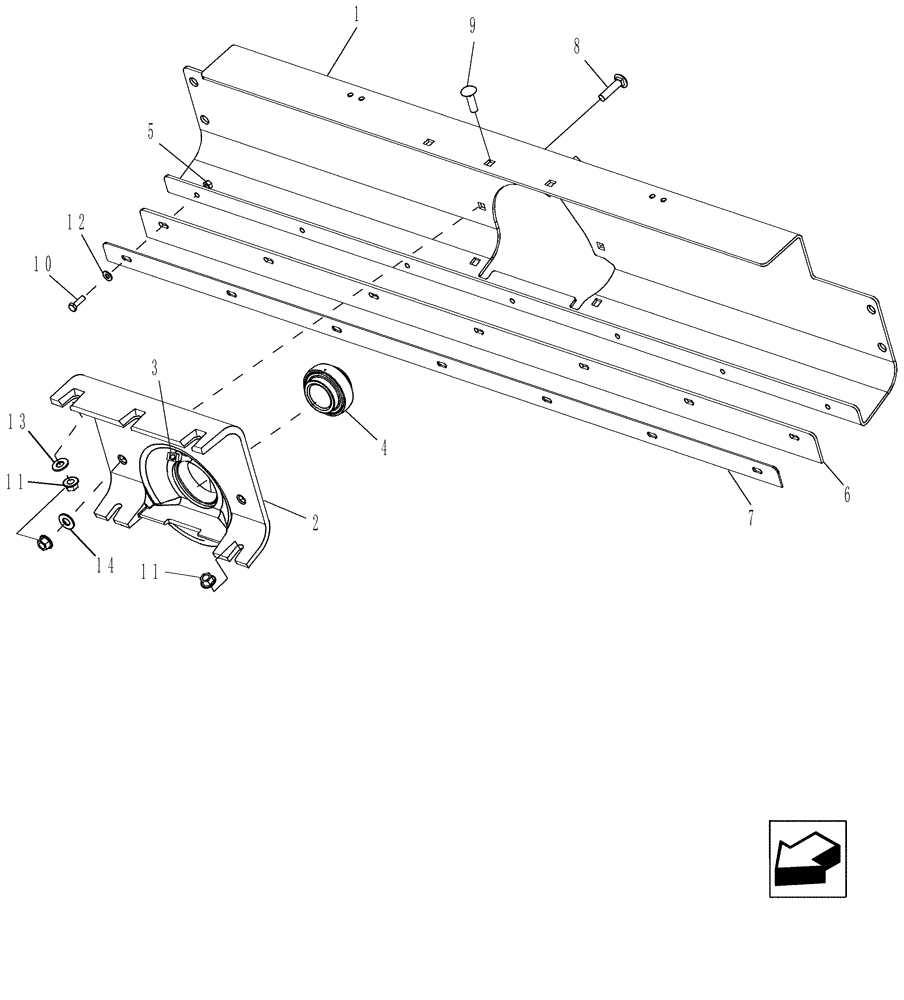

Запчасти Case IH 7230 (66.101.09[01]) - BEARING PLATE (66) - THRESHING

1

87106336

CHANNEL

Std Wear

1шт.

1

87758303

CHANNEL

Extended Wear

1шт.

2

87324051

BEARING ASSY

Includes Ref 4

1шт.

3

87020437

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1шт.

4

87324171

BALL BEARING,50.8mm ID x 100mm OD x 25mm W

1шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

6

87283403

SEAL,60mm W x 1508mm L

1шт.

7

86998407

SEAL PROTECTION

Protection

1шт.

8

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

9

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

5шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

7шт.

11

43436

FLANGE NUT,M12

7шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14шт.

13

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.
