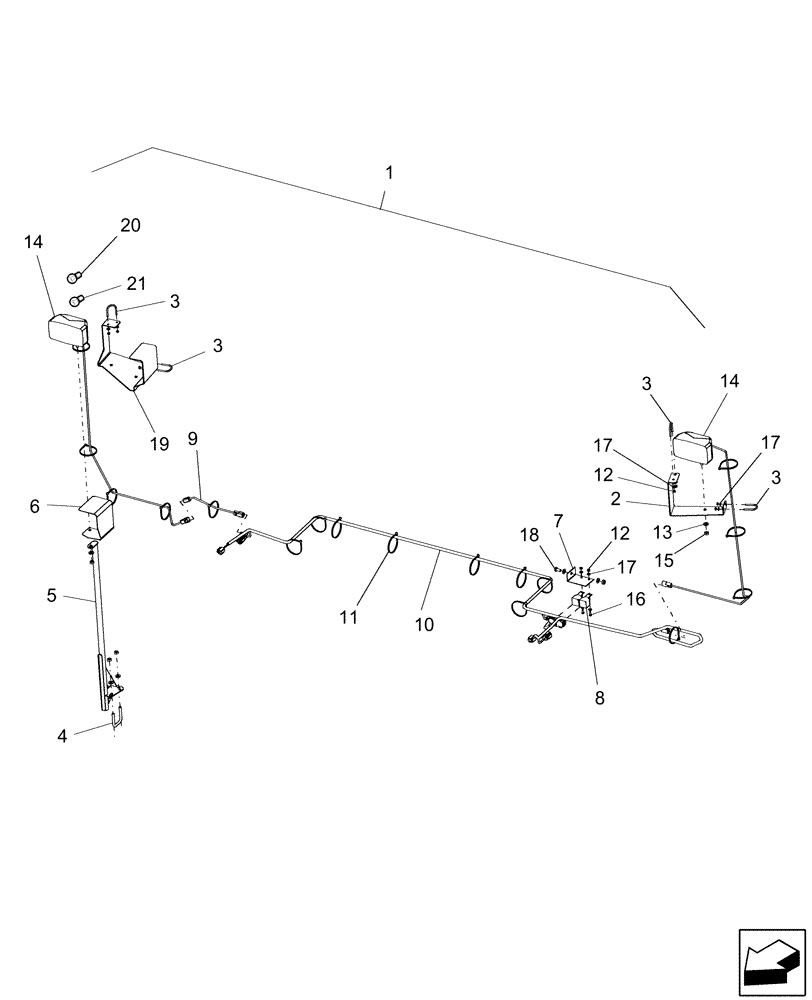

Запчасти Case IH 7230 (55.404.09) - LIGHTS, FRONT PLATFORM, WIDE - EU ONLY - (55) - ELECTRICAL SYSTEMS

1

84083663

DIA KIT, HARVESTER

Light, Front Platform, Wide

1шт.

2

87106686

BRACKET

L.H.

1шт.

3

799339

U-BOLT

4шт.

4

84334056

U-BOLT

M10

1шт.

5

87283022

SUPPORT

R.H., with Platform Extensions

1шт.

6

84433636

SHIELD

R.H.

1шт.

7

86643195

BRACKET

1шт.

8

86606352

RELAY

2шт.

9

87283194

WIRE HARNESS

Front Platform Lights, EU

1шт.

10

86616161

WIRE HARNESS

Front Platform Lights, EU

1шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

17шт.

12

9706755

NUT,M6, Cl 8

10шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

86613046

LAMP

2шт.

15

100016

NUT,M10 x 1.5, Cl 8

5шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

17

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

18

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

19

87106688

BRACKET

R.H., without Platform Extensions

1шт.

20

446592

BULB,Halogen, 12V, 60/55W

1шт.

21

353078

BULB,T8/4, 12V, 4W

1шт.
