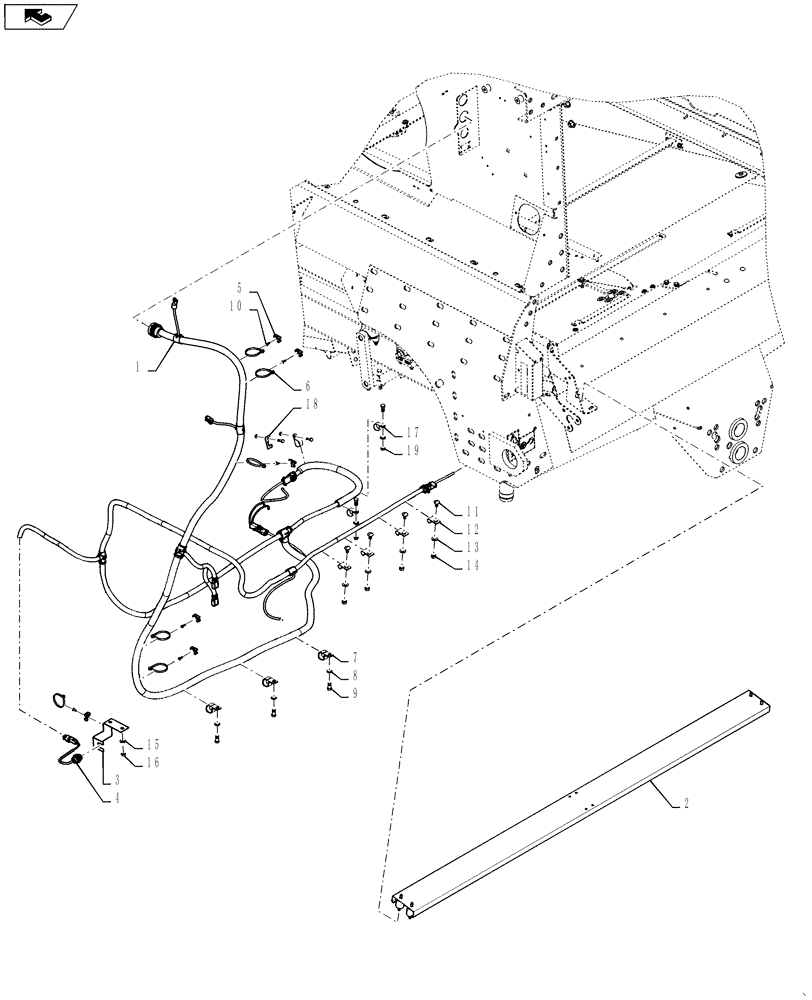

Запчасти Case IH 7230 (55.100.42) - WIRE HARNESS, REAR, LOWER FRAME (55) - ELECTRICAL SYSTEMS

1

84511555

WIRE HARNESS

Rear Lower Frame

1шт.

2

84131598

DETECTOR

For Sieve Loss

1шт.

3

84327003

BRACKET

Shaker Speed Sensor

1шт.

4

87342073

SENSOR

Shaker Speed

1шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

10шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP

15шт.

7

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

7шт.

10

445394

RIVET,Pop, 3/16" x 1/2" OAL

10шт.

11

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

12

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

9706690

NUT,M8 x 1.25, Cl 8

4шт.

15

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

353308

NUT,M6 x 1.0, Cl 8

2шт.

17

87591913

CLAMP,22.2mm, Coat, 7.1mm Bolt Hole, P Type

3шт.

18

87013667

CLIP

1шт.

19

9706755

NUT,M6, Cl 8

4шт.
