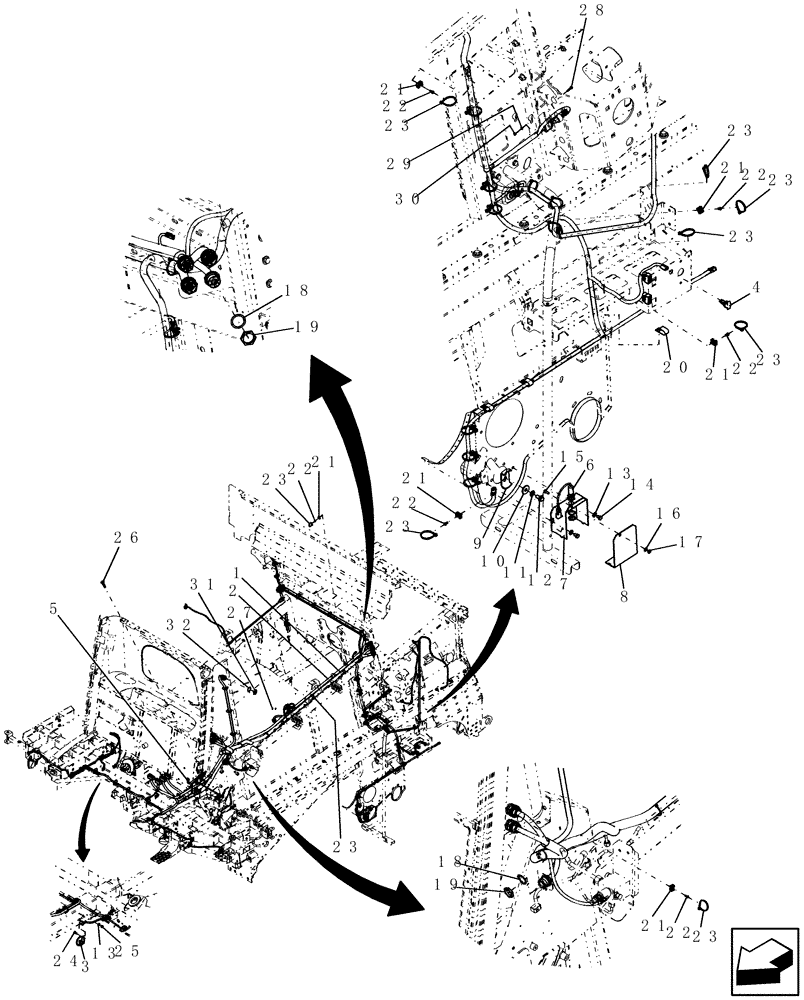

Запчасти Case IH 7230 (55.100.17) - WIRE HARNESS, MAIN FRAME (55) - ELECTRICAL SYSTEMS

1

84511545

WIRE HARNESS

Main Frame

1шт.

2

84294489

WIRE HARNESS

Expansion Harness

1шт.

3

87049215

HORN

1шт.

4

82002966

POWER SOCKET,M18 x 1

2шт.

5

86534915

GROUND CABLE

1шт.

6

87342073

SENSOR

1шт.

7

87644336

COVER

1шт.

8

87036591

COVER

1шт.

9

87108836

PLATE

1шт.

10

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

12

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

17

9706755

NUT,M6, Cl 8

1шт.

18

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

5шт.

19

86619907

NUT,1.6875"-18

5шт.

20

134577

CLIP,J

3шт.

21

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

66шт.

22

445394

RIVET,Pop, 3/16" x 1/2" OAL

66шт.

23

86566989

CABLE TIE,208mm L

CABLE STRAP

90шт.

24

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

25

9706690

NUT,M8 x 1.25, Cl 8

1шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

27

50773

SELF-TAP SCREW

2шт.

28

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

29

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

30

385681

NUT,M4 x 0.7, Cl 8

2шт.

31

9861348

NUT,1-1/2"-18

1шт.

32

9861349

LOCK WASHER,38.4mm ID x 47.9mm OD x 1.6mm Thk

1шт.
