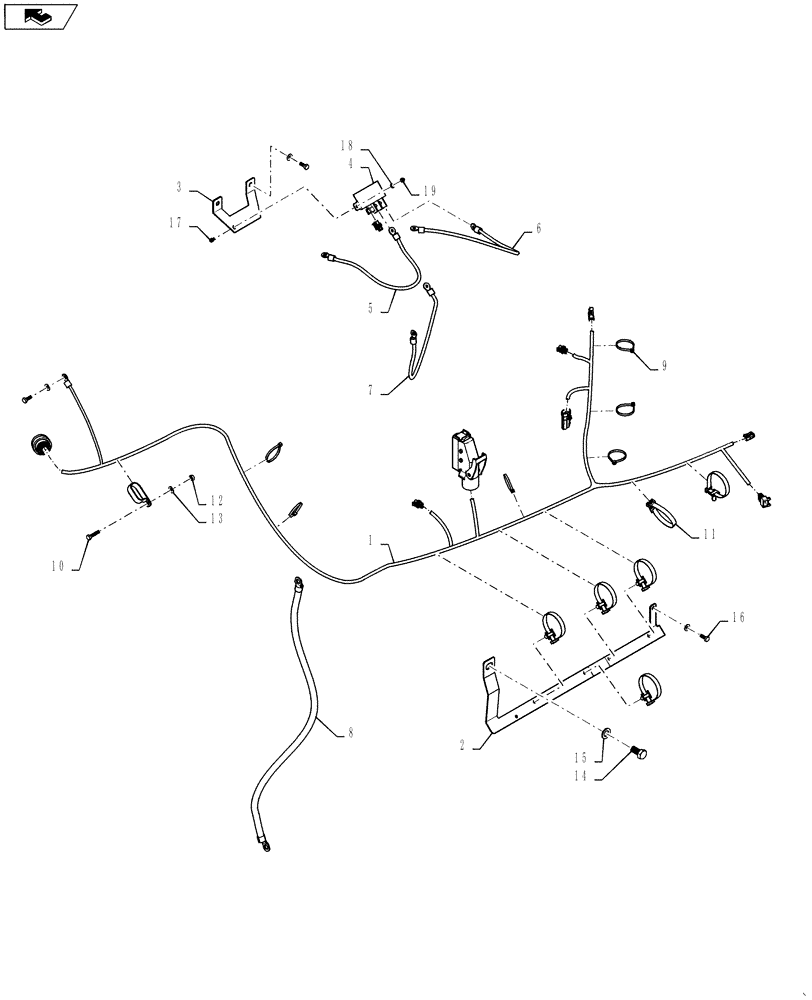

Запчасти Case IH 7230 (55.100.07) - WIRE HARNESS, ENGINE- 7230 T2/T4 (55) - ELECTRICAL SYSTEMS

1

84229023

WIRE HARNESS

Cursor 9 Engine

1шт.

2

87583801

BRACKET

1шт.

3

87582545

BRACKET

Relay Mounting

1шт.

4

86619908

RELAY,12V, 150A

Cold Start

1шт.

5

86611285

ELECTRICAL WIRE

WIRE Single Wire, 500mm, Eyelets On Each End, White

1шт.

6

86611286

ELECTRICAL WIRE

WIRE Single Wire, 400mm, Eyelets On Each End, Red

1шт.

7

86611287

CABLE,490mm L

WIRE Single Wire, 440mm, Eyelets On Each End, Black

1шт.

8

84368085

POS BATTERY CABLE

1шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

7шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

11

87000220

HOSE CLAMP

1шт.

12

9706690

NUT,M8 x 1.25, Cl 8

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

14

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

15

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

16

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

17

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

353308

NUT,M6 x 1.0, Cl 8

2шт.
