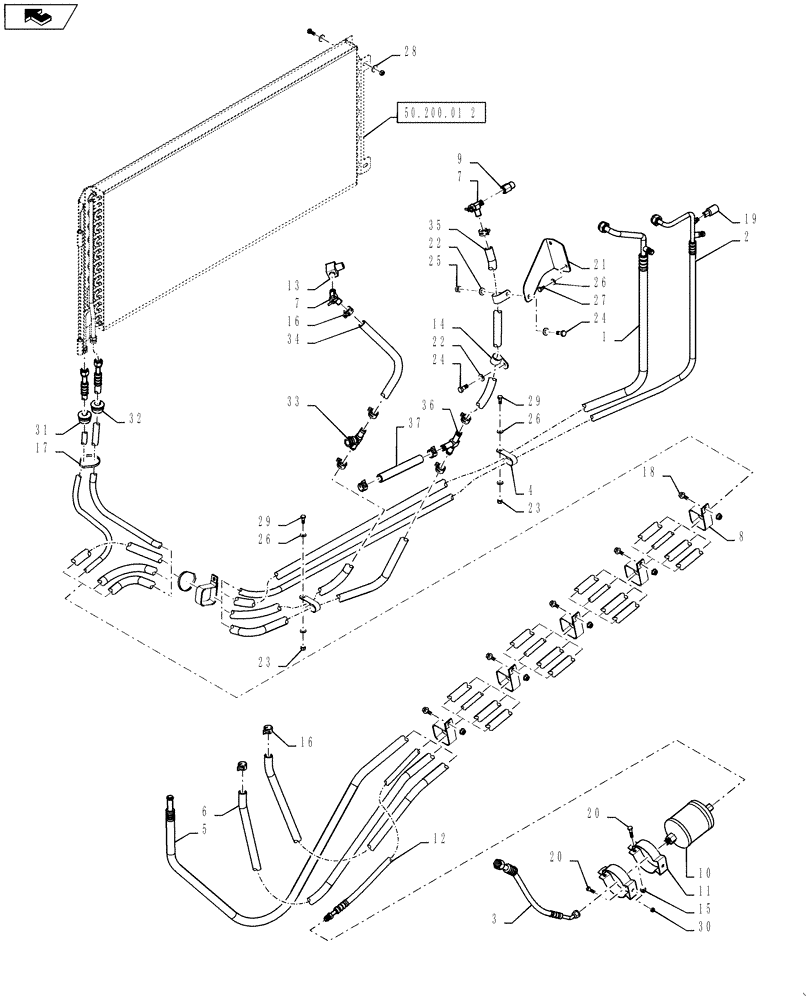

Запчасти Case IH 7230 (50.200.02) - HVAC HOSES, 7230 T4 (50) - CAB CLIMATE CONTROL

1

87736747

A/C HOSE

Suction

1шт.

2

84526765

A/C HOSE

Compressor To Condenser

1шт.

3

87736742

HOSE ASSY.

Drier To Cab

1шт.

4

87000220

HOSE CLAMP

1шт.

5

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Heater Return, 4.3 M, Cut From Bulk

1шт.

6

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Heater Supply, 4.7 M, Cut From Bulk

1шт.

7

301803R1

SHUT-OFF VALVE

2шт.

8

87000226

HOSE CLAMP

7шт.

9

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

10

87105840

RECEIVER-DRYER

1шт.

11

87105841

BRACKET

2шт.

12

84399429

A/C HOSE

Receiver Drier To Condenser

1шт.

13

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

14

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

15

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

7шт.

16

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

17

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

18

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

19

87000227

SWITCH, A/C HIGH PRE

1шт.

20

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

4шт.

21

87542153

BRACKET

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

100016

NUT,M10 x 1.5, Cl 8

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

27

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

28

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

29

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

30

9706690

NUT,M8 x 1.25, Cl 8

2шт.

31

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

32

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

33

84283392

UNION TEE

1шт.

34

84326457

HEATER HOSE

1шт.

35

1958774C1

HEATER HOSE

1шт.

36

84367016

TEE

1шт.

37

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

1шт.
