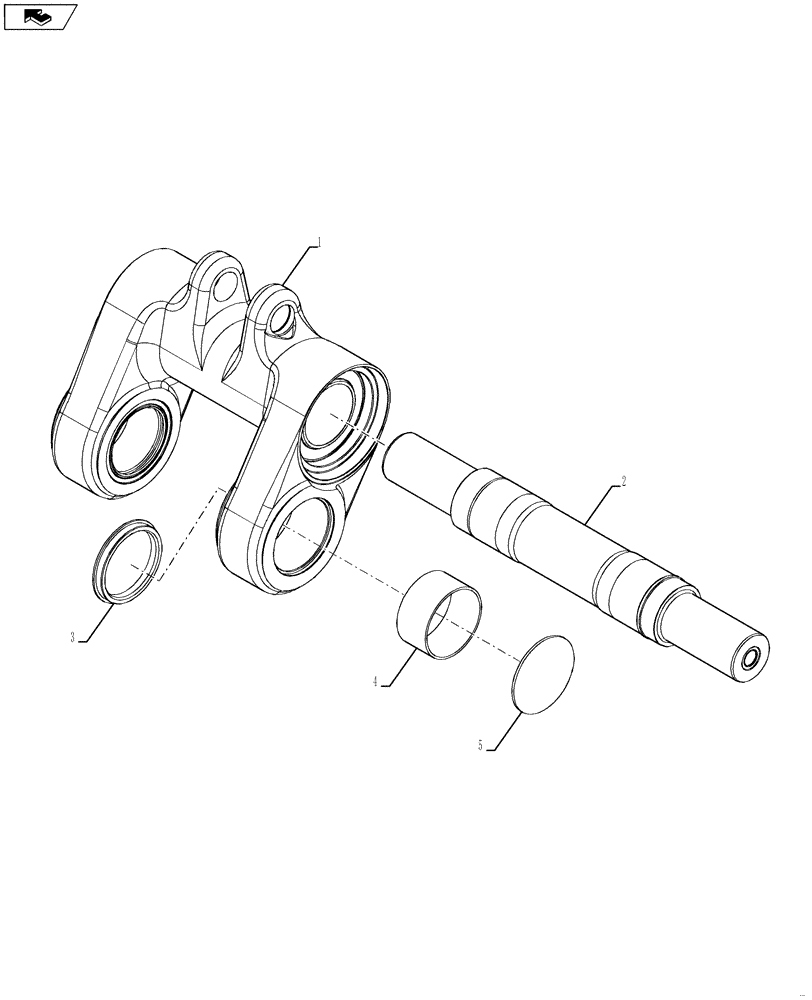

Запчасти Case IH 7230 (48.134.09) - PIVOT ASSEMBLY FRONT AXLE (48) - TRACKS & TRACK SUSPENSION

1

87308047

PIVOT

Front Idler

1шт.

2

NS

NOT SERVICED

1шт.

3

87451047

SEAL,87.38mm ID x 101.96mm OD x 12mm Thk

Mount Assy

2шт.

4

87324810

BUSHING,89.15mm ID x 95.38mm OD x 48mm L

Idler Pivot

2шт.

6

87416602

COVER,101.7mm OD

Cap Plug

2шт.
