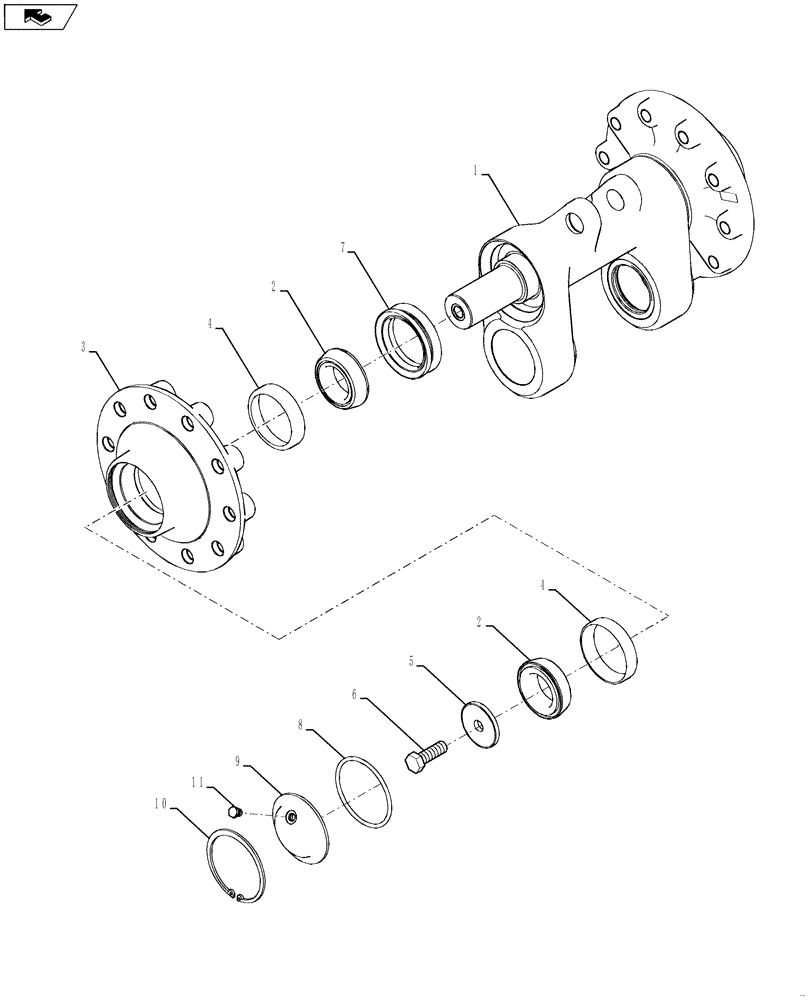

Запчасти Case IH 7230 (48.134.08) - AXLE ASSEMBLY FRONT IDLER (48) - TRACKS & TRACK SUSPENSION

1

84297322

PIVOT

1шт.

2

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

TM39585

4шт.

3

84234874

HUB

2шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

TM39520

4шт.

5

87387720

RETAINER

2шт.

6

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20x60 CLN Lubed

2шт.

7

87437010

SEAL

Idler

2шт.

8

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

9

87408174

CAP

Idler Hub

2шт.

10

800-21130

SNAP RING,M130, Int

2шт.

11

246406A1

PLUG,M12 x 1.5 ORB

2шт.
