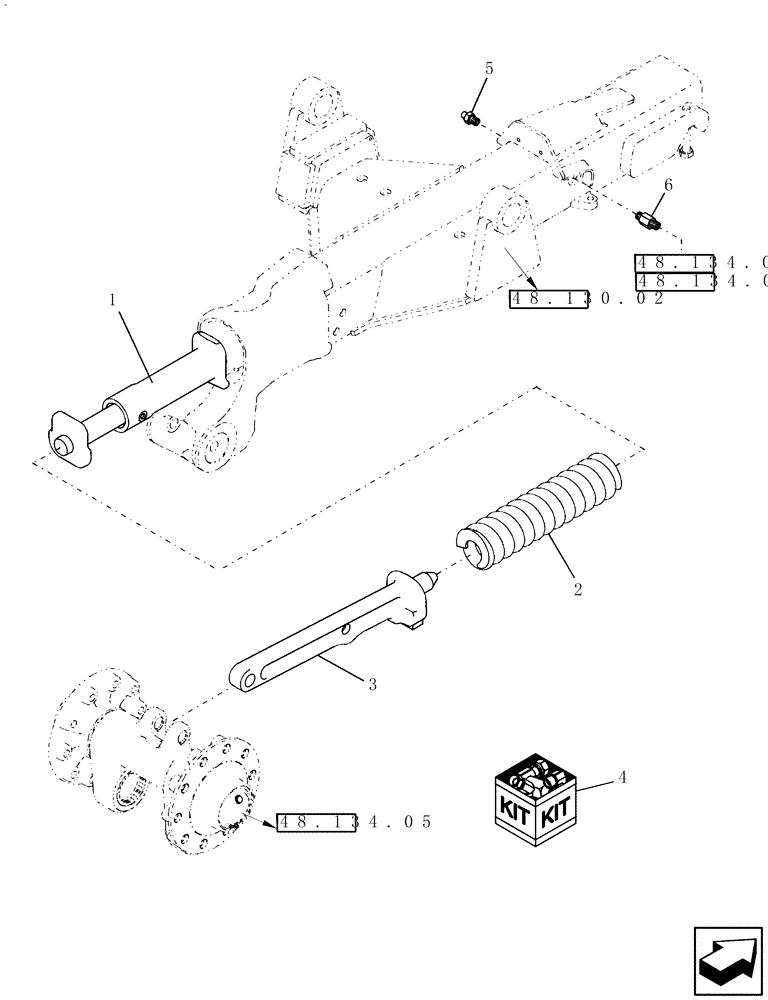

Запчасти Case IH 7230 (48.134.06) - TRACK DRIVE - TENSIONING MECHANISM, ADJUSTER-RECOIL - NA ONLY (48) - TRACKS & TRACK SUSPENSION

1

87304299

HYDRAULIC CYLINDER,60mm Rod, 228mm Stroke

Track Drive; See Also Ref 4

2шт.

1

87304299R

REMAN-HYD CYLINDER

7230, 8230, 9230, All COMBINE - TIER 4, Track Drive (3/12-)

2шт.

1

87304299C

CORE-HYD CYLINDER

Return Number

2шт.

2

255729A1

SPRING

2шт.

3

87436823

LINK ASSY.

Tension

2шт.

4

87377667

SEAL KIT

Services Ref 1

2шт.

5

325647A2

COUPLING

2шт.

6

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

2шт.
