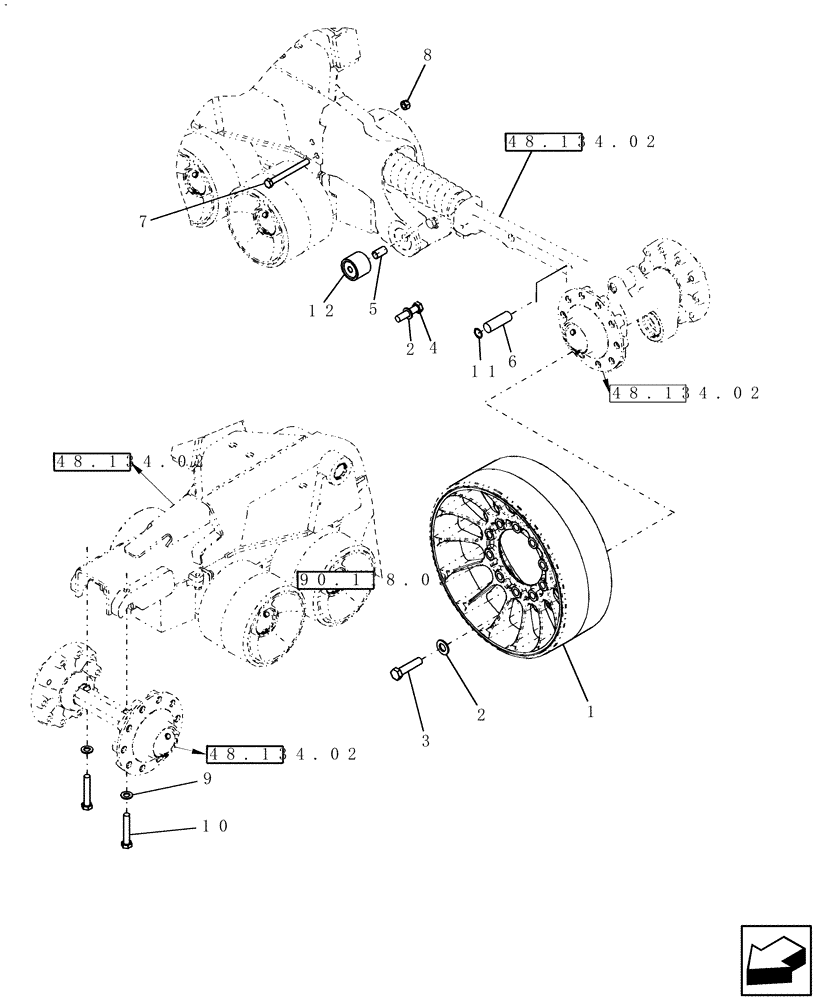

Запчасти Case IH 7230 (48.134.05) - TRACK DRIVE - IDLER WHEELS - NA ONLY (48) - TRACKS & TRACK SUSPENSION

1

87441100

WHEEL ASSY

8шт.

1

87752138R

REMAN-WHEEL ROLLER

8шт.

1

87752138C

CORE-WHEEL ROLLER

Return Number

8шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

84шт.

3

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

80шт.

4

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

4шт.

5

87585083

SPACER

2шт.

6

329647A1

PIN,38.1mm OD x 113mm L

2шт.

7

827-20200

BOLT,Hex, M20 x 2.5 x 200mm, Cl 10.9

2шт.

8

832-46420

NUT,M20 x 2.5, Cl 8

2шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

10

827-22140

BOLT,Hex, M22 x 2.5 x 140mm, Cl 10.9

4шт.

11

87038806

SNAP RING,M38, Internal

4шт.

12

87324220

IDLE SHAFT

4шт.
