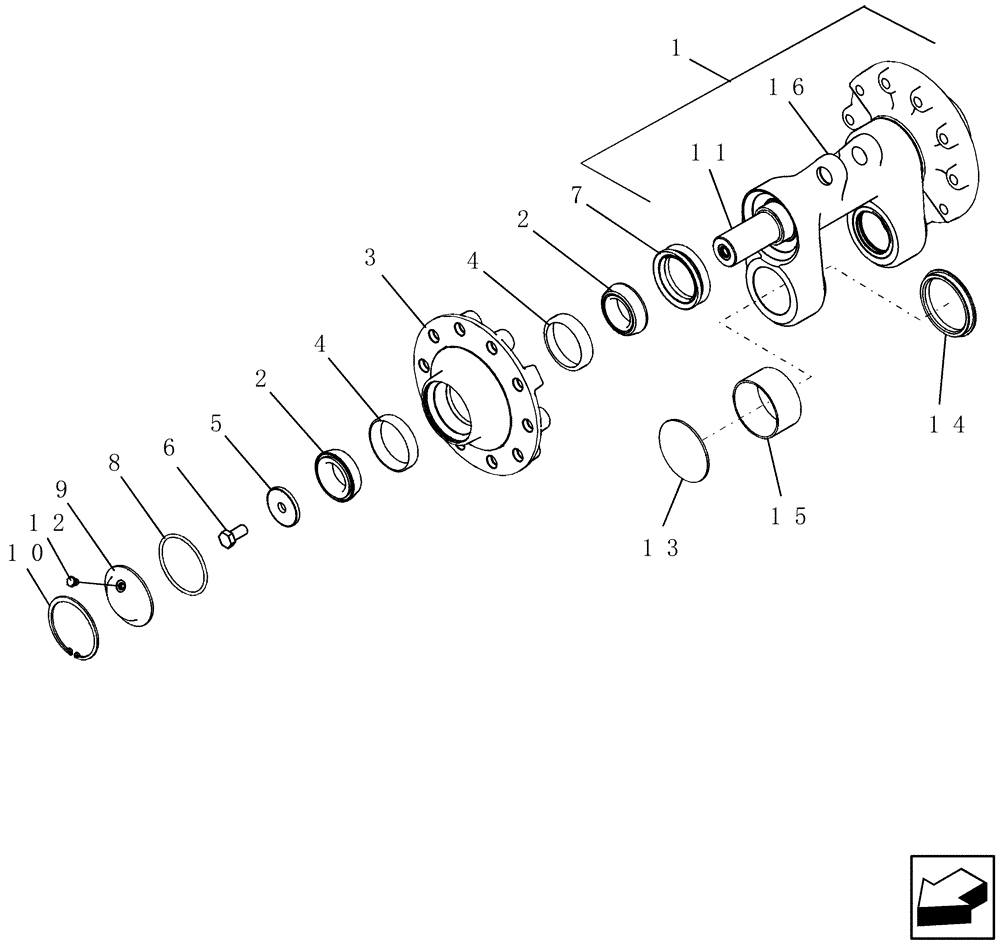

Запчасти Case IH 7230 (48.134.02) - TRACK DRIVE - FRONT IDLER WHEELS AXLE - NA ONLY (48) - TRACKS & TRACK SUSPENSION

1

87681164

PIVOT

Incl Refs 11, 13 Thru 16

1шт.

2

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

4шт.

3

87416606

HUB

2шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

4шт.

5

87387720

RETAINER

2шт.

6

87449801

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

2шт.

7

87437010

SEAL

2шт.

8

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

9

87408174

CAP

2шт.

10

370014

SNAP RING,M130, Internal

2шт.

11

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

12

246406A1

PLUG,M12 x 1.5 ORB

2шт.

13

87416602

COVER,101.7mm OD

2шт.

14

87451047

SEAL,87.38mm ID x 101.96mm OD x 12mm Thk

2шт.

15

87324810

BUSHING,89.15mm ID x 95.38mm OD x 48mm L

2шт.

16

NSS

NOT SOLD SEPARAT

Pivot, Front Idler

1шт.
