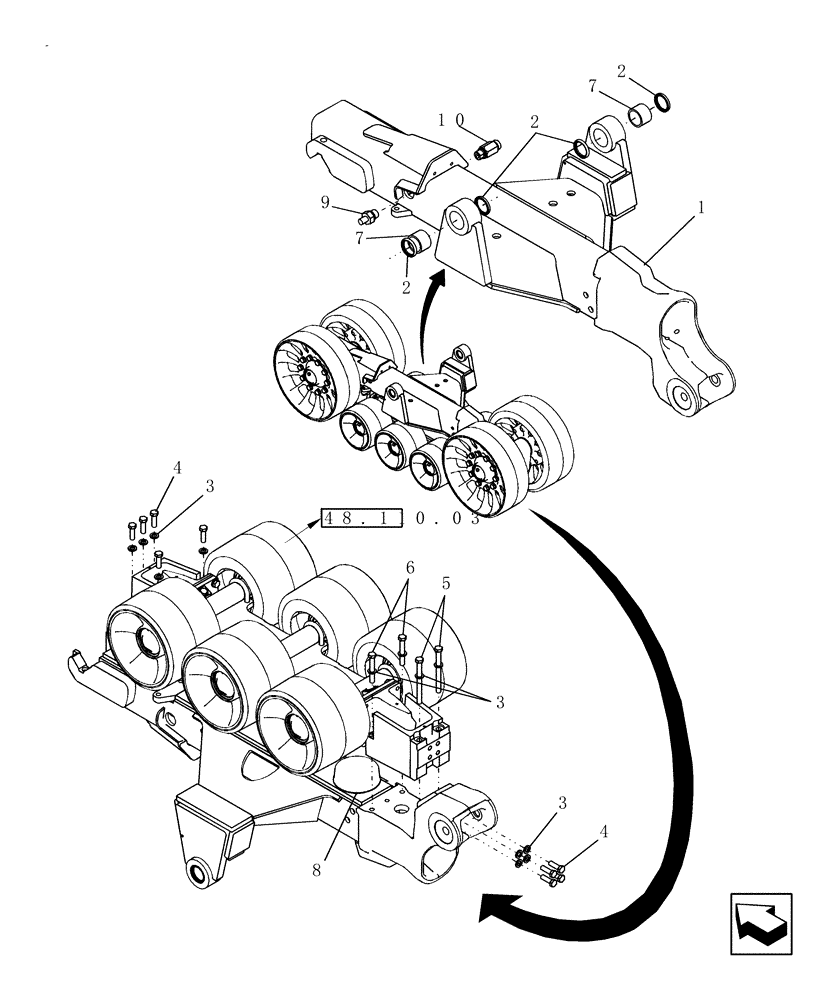

Запчасти Case IH 7230 (48.130.03) - TRACK DRIVE - UNDERCARRIAGE - NA ONLY (48) - TRACKS & TRACK SUSPENSION

1

87748448

MOUNTING PARTS

Undercarriage; R.H.

1шт.

1

87748449

MOUNTING PARTS

Undercarriage; L.H.

1шт.

2

87423203

SEAL

8шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

26шт.

4

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

18шт.

5

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

4шт.

6

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

4шт.

7

87423204

BUSHING,57.25mm ID x 69.97mm OD x 47mm L

4шт.

8

87669420

STOP,150mm OD x 68mm L

4шт.

9

325647A2

COUPLING

2шт.

10

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

2шт.
