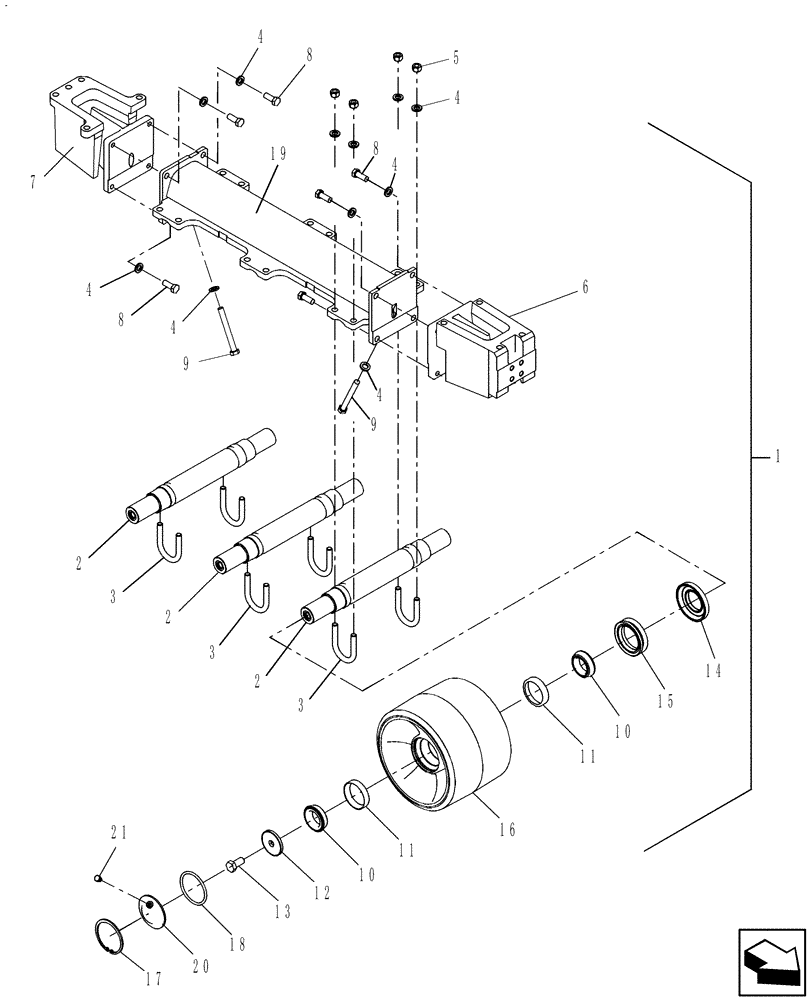

Запчасти Case IH 7230 (48.110.03) - TRACK DRIVE - ROLLER BEAM - NA ONLY (48) - TRACKS & TRACK SUSPENSION

1

87434548

BEAM ASSY.

Roller; Incl Refs 2 Thru 21

2шт.

2

87431253

ROLLER SHAFT

6шт.

3

231765A1

U-BOLT,M16 x 2 x 30mm Threaded, x 80.2mm W

BOLT "U"

12шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

44шт.

5

832-46416

NUT,M16 x 2, Cl 8

24шт.

6

389763A1

SUSPENSION

Mount, Front

2шт.

6

389763A1R

SUSPENSION

Mount, Front. Remanufactured

2шт.

6

389763A1C

SUSPENSION

Return Number

2шт.

7

389761A1

SUSPENSION

Mount, Rear

2шт.

7

389761A1R

SUSPENSION

Mount, Rear. Remanufactured

2шт.

7

389761A1C

SUSPENSION

Return Number

2шт.

8

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

9

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

4шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

24шт.

11

625743C1

BEARING CUP,90mm OD x 18.5mm W

24шт.

12

87387720

RETAINER

12шт.

13

87449801

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

12шт.

14

87304018

CUP,65.98mm ID x 124.7mm OD x 25mm Thk

12шт.

15

87437009

SEAL

12шт.

16

87438307

WHEEL ASSY

12шт.

87309812

WHEEL ASSY

Roller

1шт.

16

47487680R

REMAN-WHEEL ROLLER

7230 FS7AN4, 8230 FS8AN4, 9230 FS9AN4, All Tier 4 (3/12), Reman For New P/N 84162383, 87438307, 87309812

12шт.

16

47487680C

CORE-WHEEL ROLLER

Return Number

1шт.

17

800-21110

SNAP RING,M110, Int

12шт.

18

86984140

O-RING,97mm ID x 6.99mm Thk

12шт.

19

408786A1

BEAM

2шт.

20

87404689

CAP

12шт.

21

246406A1

PLUG,M12 x 1.5 ORB

12шт.
