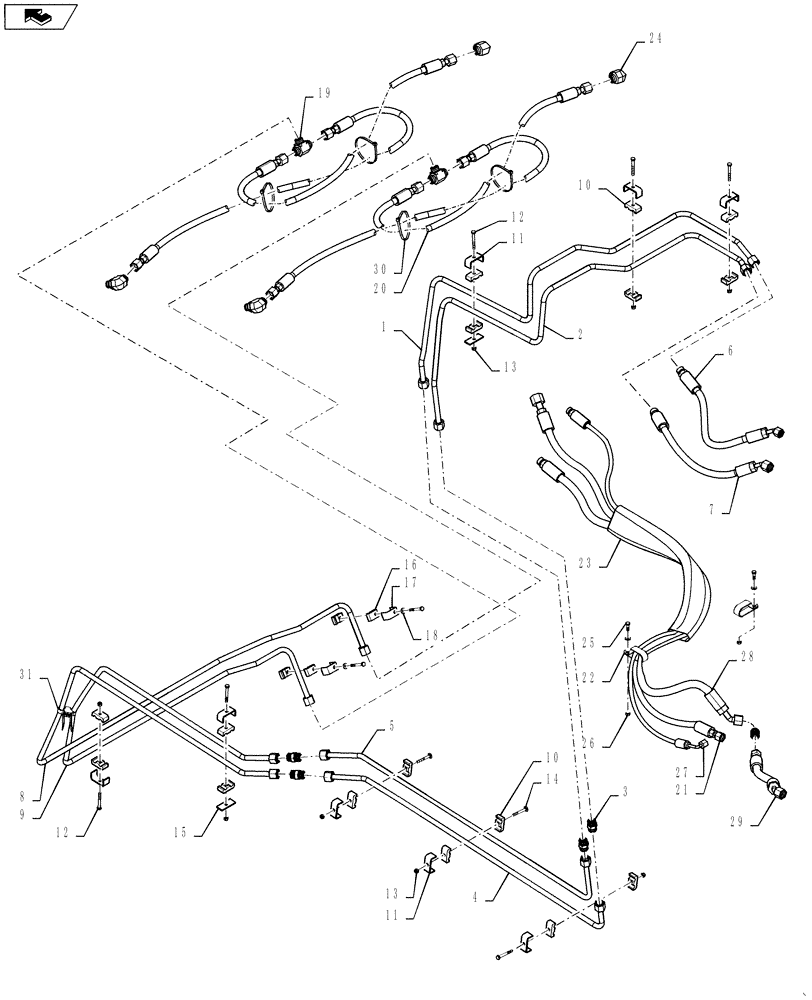

Запчасти Case IH 7230 (41.200.01) - HYDRAULIC STEERING PLUMBING 7230 (41) - STEERING

1

84351973

HYD TUBE

Steering Right Front

1шт.

2

84351978

HYD TUBE

Steering Left Front

1шт.

3

84431547

UNION,13/16"-16 ORFS

5шт.

4

87280104

HYD TUBE,0.50" OD

Steering Mid Lower

1шт.

5

86975348

HYD TUBE,0.50" OD

Steering Mid Upper

1шт.

6

84352320

HYDRAULIC HOSE

Steering RF

1шт.

7

84352318

HYDRAULIC HOSE

Steering LF

1шт.

8

87011296

HYD TUBE,12.7mm OD

Steering RR

1шт.

9

86575639

HYD TUBE,12.7mm OD

1шт.

10

430357

CLAMP

16шт.

11

431941

SUPPORT

8шт.

12

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

8шт.

13

353308

NUT,M6 x 1.0, Cl 8

8шт.

14

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

15

434097

SUPPORT

2шт.

16

433008

CLAMP

4шт.

17

442340

SUPPORT

2шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

19

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

20

84068103

HYDRAULIC HOSE,9.53mm ID x 1200mm L, SAE 100R16

Steering

4шт.

21

84352499

HYDRAULIC HOSE

SCU Pressure

1шт.

22

87000220

HOSE CLAMP

2шт.

23

87106240

SLEEVE

1шт.

24

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

25

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

26

9706755

NUT,M6, Cl 8

2шт.

27

84352501

HYDRAULIC HOSE

SCU Signal

1шт.

28

84352500

HYDRAULIC HOSE

SCU Return 1

1шт.

29

84367416

HYDRAULIC HOSE

SCU Return 2

1шт.

30

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

31

327144A1

STRAP,328mm L

1шт.
