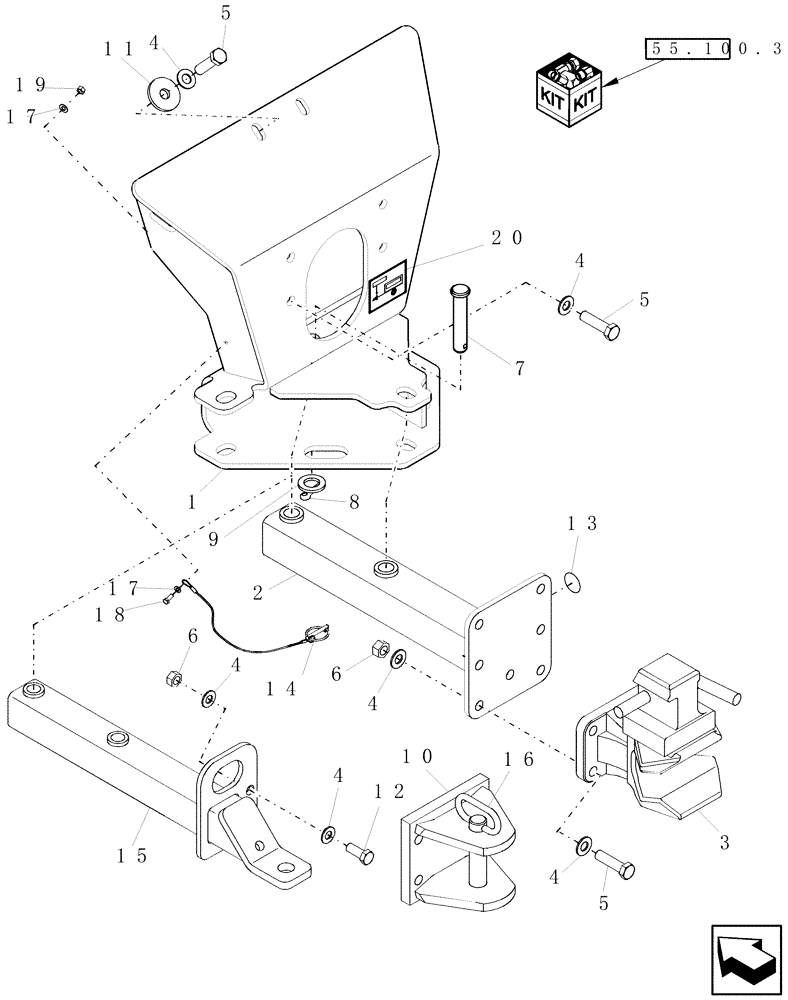

Запчасти Case IH 7230 (39.110.02) - HITCH, TRAILER (39) - FRAMES AND BALLASTING

84527811

SERVICE KIT

Auto-Rotating Hitch, Incl Refs 1 Thru 20, As Indicated

1шт.

NA

1шт.

84421627

SERVICE KIT

Auto-Rotating Hitch, Incl Refs 1 Thru 20, As Indicated

1шт.

EU Only

1шт.

84527753

SERVICE KIT

Kit, Fixed, Incl Refs 1 Thru 20, As Indicated

1шт.

NA

1шт.

84528210

SERVICE KIT

Fixed, Incl 84084745

1шт.

EU Only

1шт.

1

84427774

MOUNT

Incl Decal

1шт.

2

84421626

RIGID TUBE

Hitch

1шт.

3

84512346

HITCH

Auto Rot

1шт.

3

84499135

HITCH

Auto Rotate, EU, Not Shown

1шт.

4

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

14шт.

5

323866

BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8

10шт.

6

100020

NUT,M16 x 2.0, Cl 8

4шт.

7

86984254

CLEVIS PIN,24mm OD x 135mm L

2шт.

8

9515820

COTTER PIN,M10.5 x 24mm OD x 3mm Thk

1шт.

9

140022

WASHER,26mm ID x 44mm OD x 4mm Thk

2шт.

10

84400985

HITCH

1шт.

EU Only

1шт.

Fixed Hitch

1шт.

11

337522

WASHER,17.5mm ID x 56mm OD x 5mm Thk

2шт.

12

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

13

84334828

DECAL

100 Hour

1шт.

Used W/Ref 3 Only

1шт.

14

87668116

LOCK PIN,6mm OD

Incl Tether

1шт.

15

84527725

HITCH

1шт.

Fixed Hitch

1шт.

For NA Only

1шт.

16

84817651

HITCH PIN

1шт.

EU Only

1шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

19

9706690

NUT,M8 x 1.25, Cl 8

1шт.

20

84433130

DECAL

Maximum Weight

1шт.
