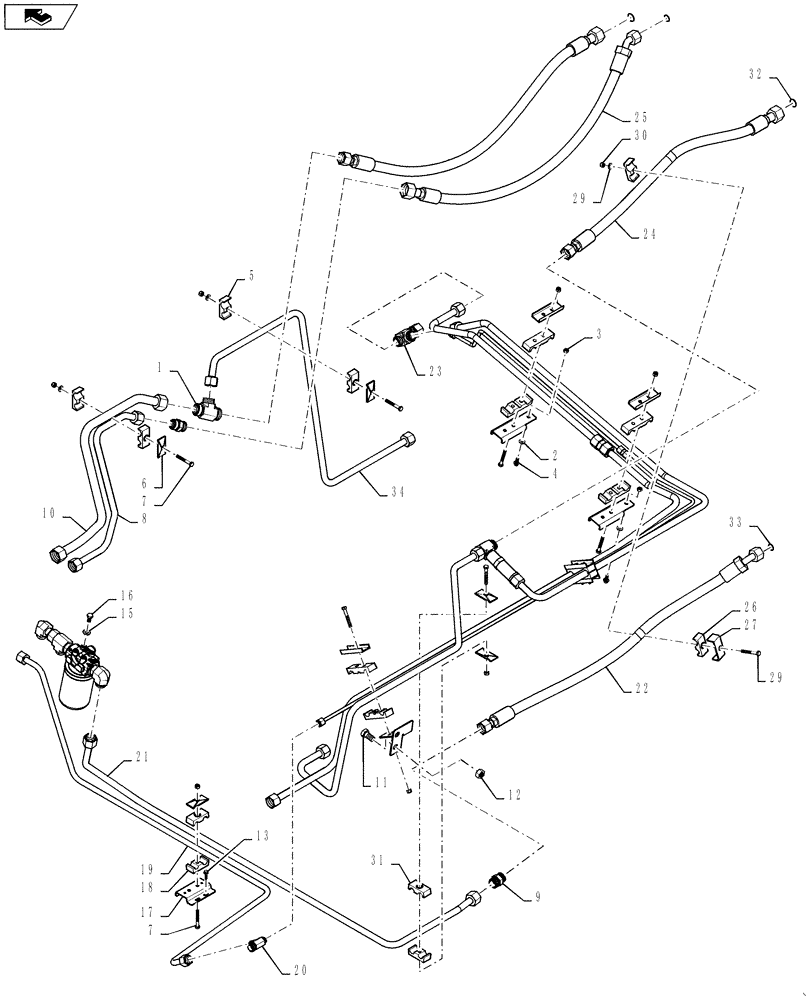

Запчасти Case IH 7230 (35.910.02) - ENGINE HYDRAULICS FRONT 7230 ONLY (35) - HYDRAULIC SYSTEMS

1

87000837

TEE

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

5

87000146

CLAMP

1шт.

6

87000230

PLATE

6шт.

7

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

5шт.

8

84385214

HYD TUBE

Main Cooler Outlet

1шт.

9

84100407

UNION,1-3/16"-12 ORFS

2шт.

10

84385212

HYD TUBE

Aux Cooler Outlet

1шт.

11

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

12

100020

NUT,M16 x 2.0, Cl 8

2шт.

13

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

4шт.

14

NSS

NOT SOLD SEPARAT

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

16

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

17

84355002

BRACKET

2шт.

18

87000144

CLAMP

2шт.

19

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Bulkhead To Tee

1шт.

20

87109744

FITTING

1шт.

21

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Main Cooler Inlet

1шт.

22

87397348

HOSE ASSY.

Main Cooler

2шт.

23

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.

24

87397352

HOSE ASSY.

Aux Cooler Inlet

1шт.

25

87397357

HOSE ASSY.

Aux Cooler Outlet

1шт.

26

457547

CLAMP

2шт.

27

743320

SUPPORT

1шт.

28

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

29

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

30

353308

NUT,M6 x 1.0, Cl 8

1шт.

31

87000140

CLAMP,Tube, 19.05mm

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

33

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

34

84385216

HYD TUBE

Cleaning Fan Valve Return

1шт.
