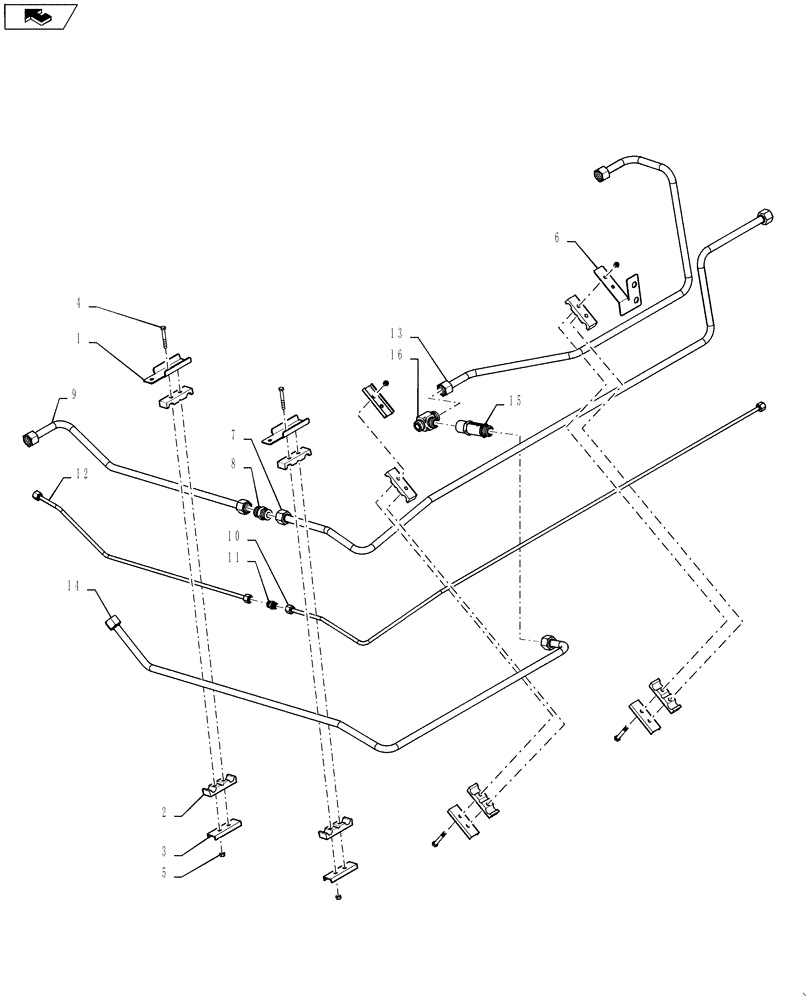

Запчасти Case IH 7230 (35.910.01) - ENGINE HYDRAULICS REAR 7230 (35) - HYDRAULIC SYSTEMS

1

84355002

BRACKET

1шт.

2

86998883

CLAMP

4шт.

3

87000242

CHANNEL

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

8шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

6

87000942

BRACKET

1шт.

7

84354986

HYD TUBE

Cleaning Fan Pressure

1шт.

8

84100407

UNION,1-3/16"-12 ORFS

1шт.

9

84354991

HYD TUBE

Cleaning Fan Valve Pressure

1шт.

10

84354993

HYD TUBE

Cleaning Fan Drain

1шт.

11

84431546

UNION,11/16"-16 ORFS

1шт.

12

84354996

HYD TUBE

Cleaning Fan Drain

1шт.

13

84169061

HYD TUBE,20 mm OD

Spreader Return

1шт.

14

84355004

HYD TUBE

Aux Cooler Bypass

1шт.

15

87563490

CHECK VALVE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS

110 PSI

1шт.

16

87359490

UNION

20mm

1шт.
