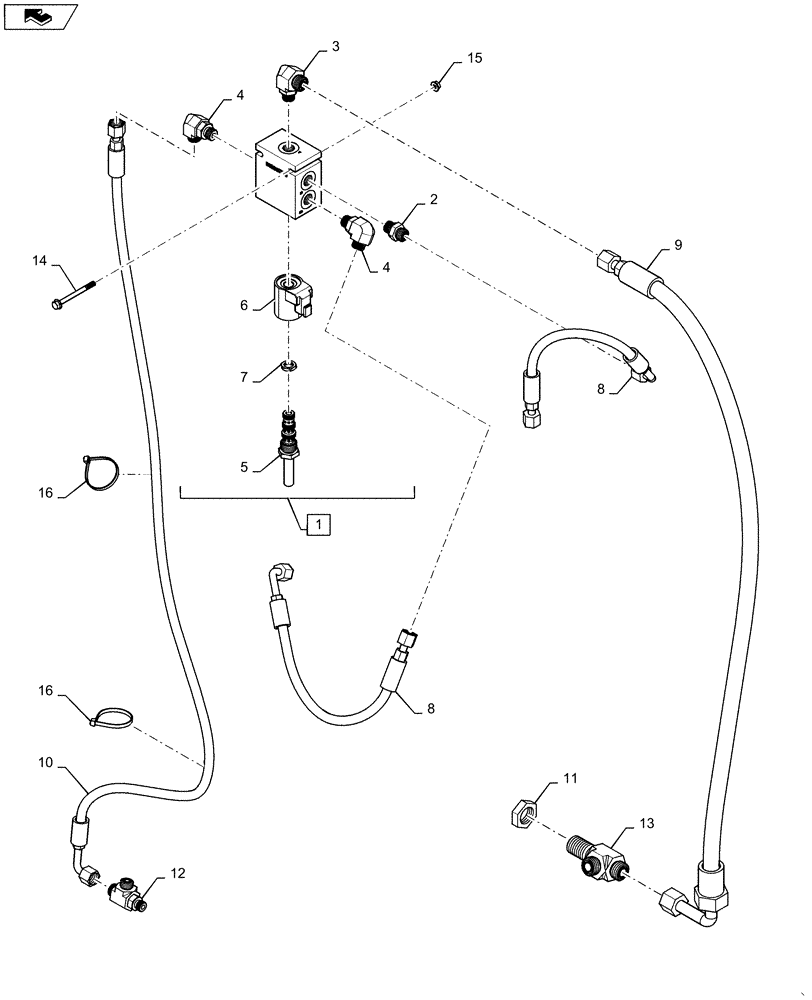

Запчасти Case IH 7230 (35.480.07) - HYDRAULIC UNLOADER CLUTCH DUAL DRIVE (35) - HYDRAULIC SYSTEMS

1

84286198

VALVE

Unload, Incl 1 - 7

1шт.

2

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

3

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

1шт.

4

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

2шт.

5

187849C1

SOLENOID VALVE

1шт.

6

87352779

SOLENOID

1шт.

7

195683A1

JAM NUT,1/2"-20

1шт.

8

84284532

HOSE ASSY.

Unload Cylinder To Valve

2шт.

9

84522961

HYDRAULIC HOSE

Unload Valve Return

1шт.

10

84284973

HOSE ASSY.

Unload Valve Pressure

1шт.

11

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

12

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

86639081

TEE,1"-14 ORFS, Bulkhead

1шт.

14

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

2шт.

15

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

16

86566989

CABLE TIE,208mm L

2шт.
