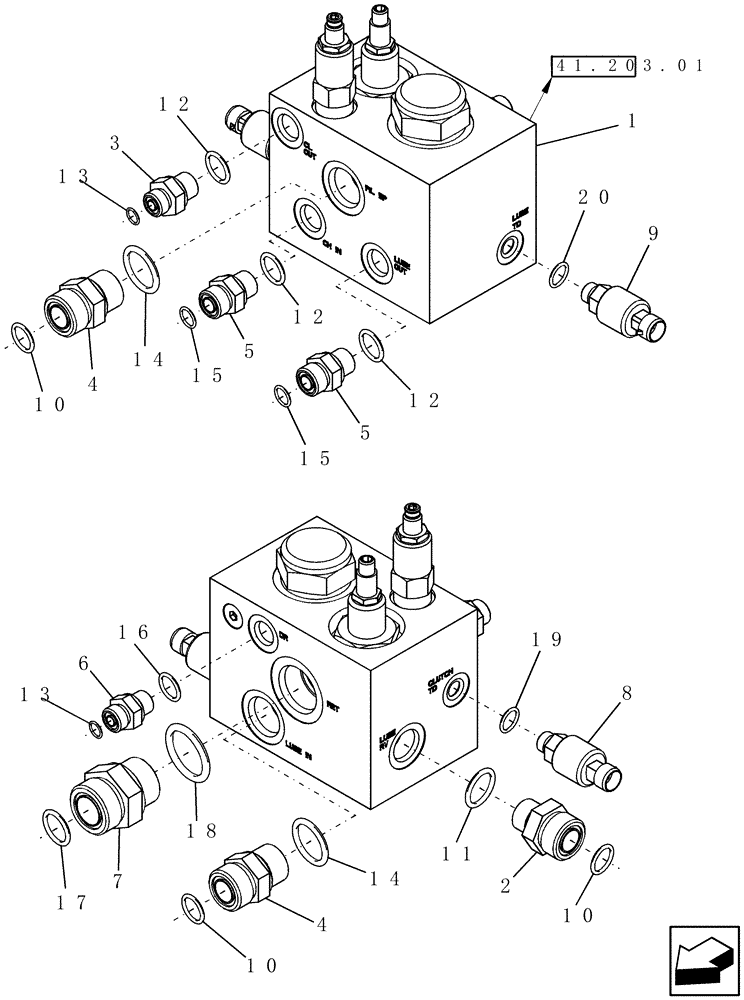

Запчасти Case IH 7230 (35.300.13) - VALVE, HYDRAULIC PTO/CHARGE REGULATOR - CONNECTORS (35) - HYDRAULIC SYSTEMS

1

87645687

VALVE

Less Connectors

1шт.

2

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl Ref 10 & 11

1шт.

3

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl Ref 12 & 13

1шт.

4

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl Ref 10 & 14

2шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl Ref 12 & 15

2шт.

6

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl Ref 13 & 16

1шт.

7

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl Ref 17 & 18

1шт.

8

87280944

PRESSURE SWITCH

Lube Pressure; Incl Ref 19

1шт.

9

87693034

SENSOR

Hyd PTO/Charge Regulator; Incl Ref 20

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

17

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

18

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

19

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring

1шт.
