Запчасти Case IH 7230 (35.300.03) - HYDRAULIC CHARGE FILTER ASSY (35) - HYDRAULIC SYSTEMS

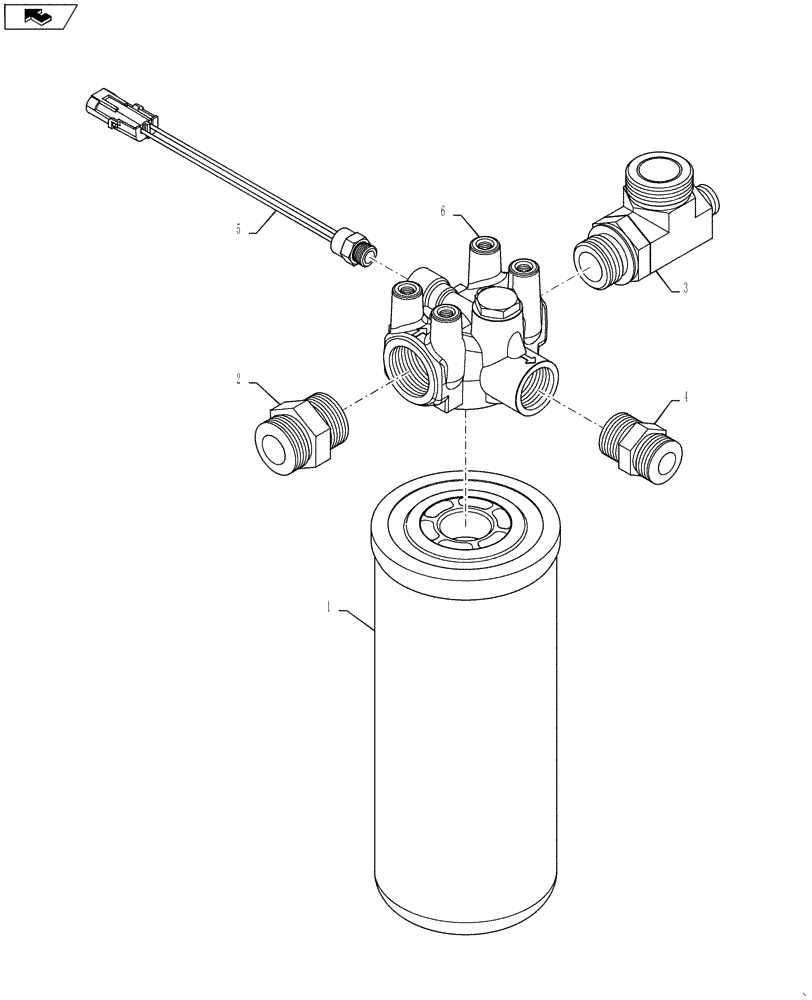

Схема запчастей Case IH 7230 - (35.300.03) - HYDRAULIC CHARGE FILTER ASSY (35) - HYDRAULIC SYSTEMS
1
6
2
3
4
5
home

Артикул

Название

Примечание

Количество

1

254353A1

HYDRAULIC OIL FILTER

Filter Only, Spin On

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Uses O-Rings 86598104 And 9824050

2шт.

3

87661803

REDUCER FITTING

Uses O-Rings 86598104,9992298,9824051

3шт.

4

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Uses O-Rings 86598103 And 9991976

1шт.

5

87447716

SWITCH

1шт.

6

84298032

HYDRAULIC OIL FILTER

Head Assy W Ref 5 Inc

1шт.

Выбрано товаров: 6
